794040 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

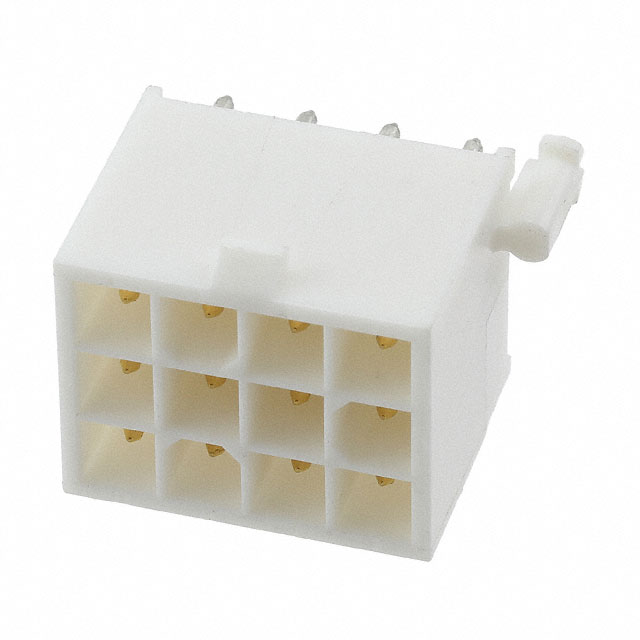

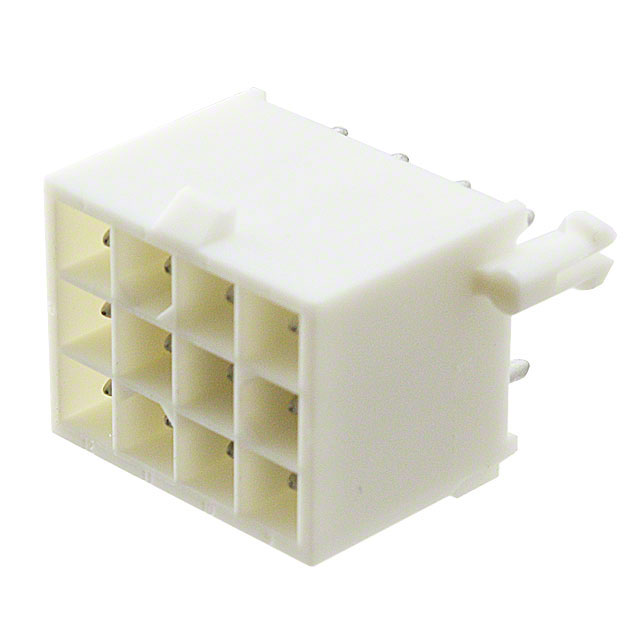

CONN HEADER VERT 12POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Shrouding | Material Flammability Rating | Contact Finish - Post | Fastening Type | Insulation Material | Contact Material | Current Rating (Amps) | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions Loaded | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Style | Mounting Type | Insulation Color | Contact Type | Number of Rows [custom] | Voltage Rating | Insulation Height | Insulation Height | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Shrouded - 4 Wall | UL94 V-0 | Tin-Lead | Locking Ramp | Nylon Polyamide (PA) | Brass | Varies by Wire Gauge | Header | -20 ░C | 105 ░C | Board Lock | All | Solder | 4.14 mm | 0.163 in | Circular | 0.76 Ám | 30 Áin | Gold | Board to Cable/Wire | Through Hole | White | Male Pin | 3 | 600 VAC | 13.5 mm | 0.531 in | 12 | 0.163 in | 4.14 mm | 4.45 mm | 0.175 in |
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Shrouded - 4 Wall | UL94 V-0 | Tin-Lead | Locking Ramp | Nylon Polyamide (PA) | Brass | Varies by Wire Gauge | Header | -20 ░C | 85 °C | Board Lock | All | Solder | 4.14 mm | 0.163 in | Circular | 3.81 Ám | 150 Áin | Tin-Lead | Board to Cable/Wire | Through Hole | White | Male Pin | 3 | 600 VAC | 13.5 mm | 0.531 in | 12 | 0.163 in | 4.14 mm | 4.45 mm | 0.175 in |
