SFH31 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 82POS 0.05 GOLD SMD

Part	Contact Material	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Mating	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Connector Type	Insulation Color	Fastening Type	Insulation Height	Insulation Height	Features	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Contact Finish Thickness - Mating	Number of Positions [custom]
Sullins Connector Solutions SFH31-NPPB-D41-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	82	Solder	Flash
Sullins Connector Solutions SFH31-NPPB-D31-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	62	Solder	Flash
Sullins Connector Solutions SFH31-NPPB-D06-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	12	Solder	Flash
Sullins Connector Solutions SFH31-NPPB-D26-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	52	Solder	Flash

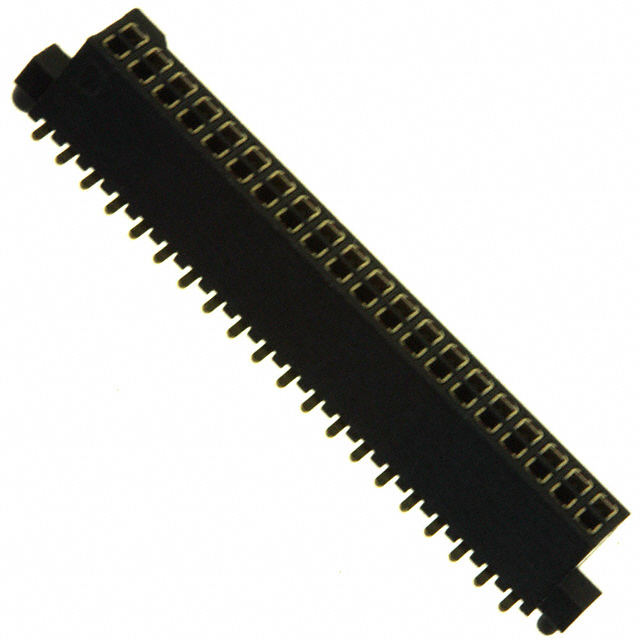

Sullins Connector Solutions SFH31-NPPB-D20-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	40	Solder	Flash

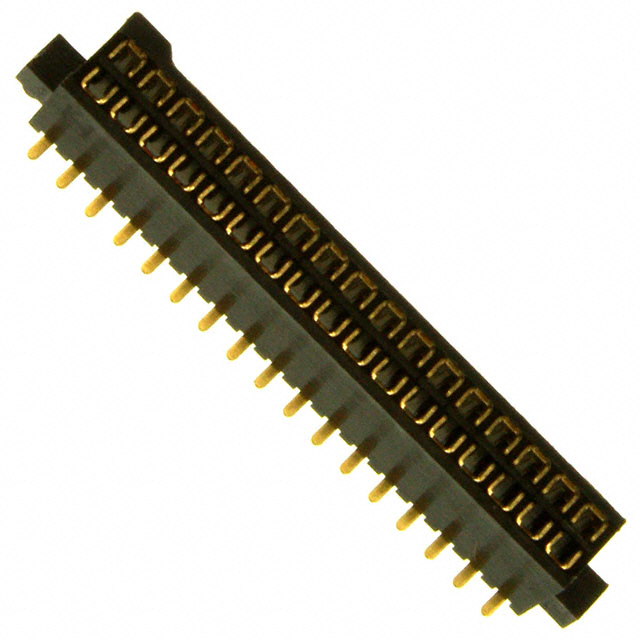

Sullins Connector Solutions SFH31-NPPB-D17-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in		Solder	Flash	34
Sullins Connector Solutions SFH31-NPPB-D33-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	66	Solder	Flash
Sullins Connector Solutions SFH31-NPPB-D12-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	24	Solder	Flash
Sullins Connector Solutions SFH31-NPPB-D14-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	28	Solder	Flash
Sullins Connector Solutions SFH31-NPPB-D23-SP-BK	Phosphor Bronze	Flash	Square	Nylon Polyamide (PA)	Female Socket	-40 C	105 ░C	All	Gold	2	0.05 in	1.27 mm	UL94 V-0	Header	Black	Push-Pull	4.4 mm	0.173 in	Board Guide	Gold	Surface Mount	1.27 mm	0.05 in	46	Solder	Flash
