PNL-1 Series
Manufacturer: Panduit Corp
Beta
⌘K

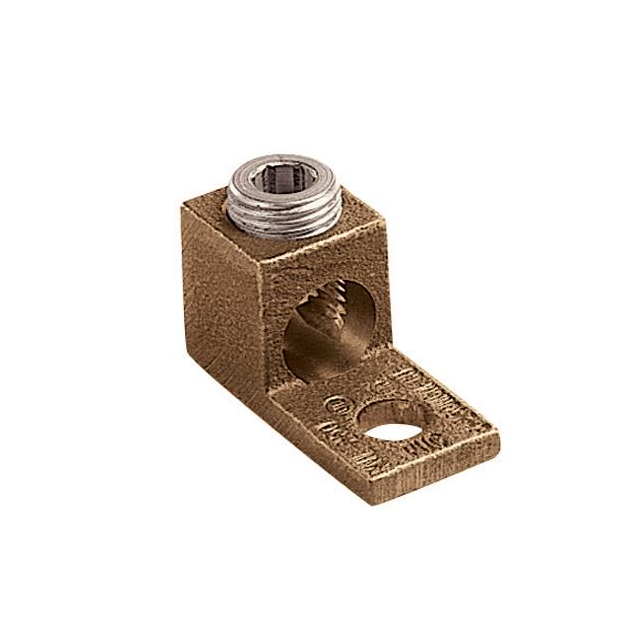

LUG TERMINAL, PAN-LUG PNL SERIES, SCREW, 0 AWG, MECHANICAL LUG, M8
| Part | Contact Material | Diameter - Ring ID | Diameter - Ring ID | Insulation | Mounting Type | Length - Overall | Length - Overall | Features | Width - Outer Edges [x] | Width - Outer Edges [x] | Tab Thickness | Tab Thickness | Termination | Terminal Style | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Diameter - Ring ID | Length - Overall [x] | Length - Overall [x] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Copper Alloy | 0.27 in | 6.86 mm | Non-Insulated | Free Hanging (In-Line) | 40.39 mm | 1.59 in | With Screw | 18.54 mm | 0.73 in | 0.14 in | 3.56 mm | Screw | Single Stud Hole | Lug Grounding | -2 AWG | 8 AWG | ||||||
 Panduit Corp | Copper Alloy | 0.34 in | Non-Insulated | Free Hanging (In-Line) | With Screw | 19.05 mm | 0.75 in | 0.19 in | 4.83 mm | Screw | Two Stud Holes | Lug Grounding | -2 AWG | 8 AWG | 8.64 mm | 2.75 in | 69.85 mm | ||||||
 Panduit Corp | Copper Alloy | Non-Insulated | Free Hanging (In-Line) | With Screw | 1.75 " | 0.375 in | 9.53 mm | Screw | Single Stud Hole | Lug Grounding | 500 MCM | 1000 MCM | 3.88 in | 98.55 mm | 14.22 mm | 0.56 " | 44.45 mm |
