305-052 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 52POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Gender	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Color	Features	Card Type	Contact Finish	Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Pitch	Pitch	Read Out	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]

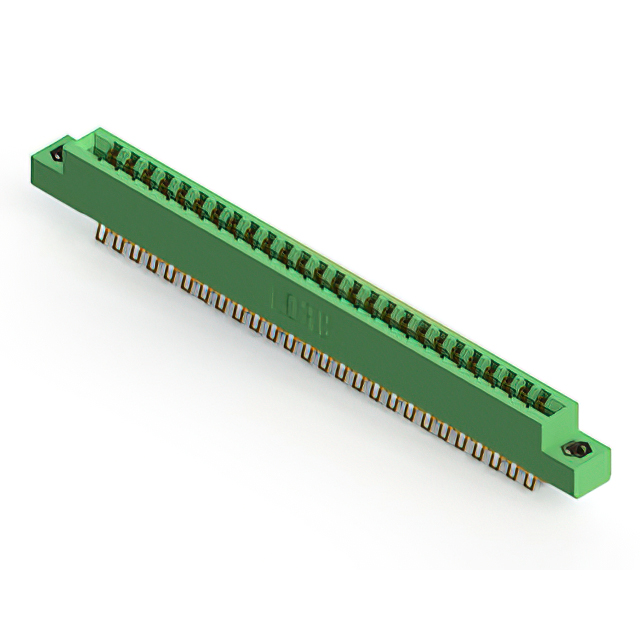

EDAC Inc. 305-052-555-208	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Card Extender	Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	3.96 mm	0.156 in	Dual	52

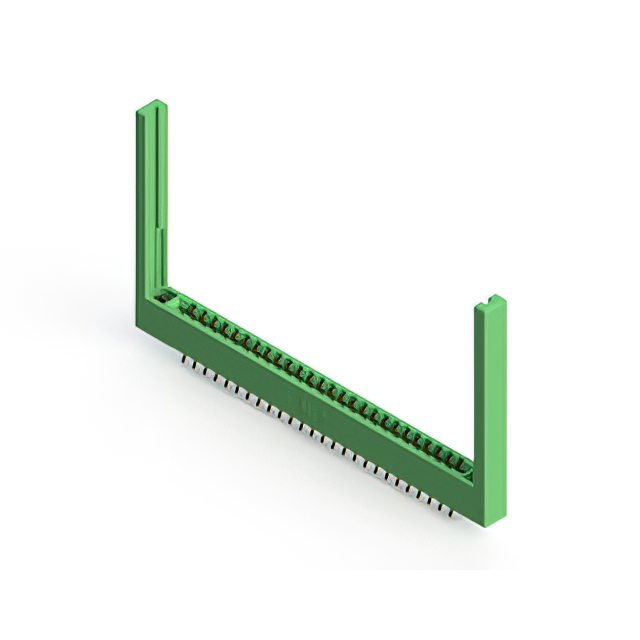

EDAC Inc. 305-052-556-568	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Card Extender Card Guides	Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	3.96 mm	0.156 in	Dual	52

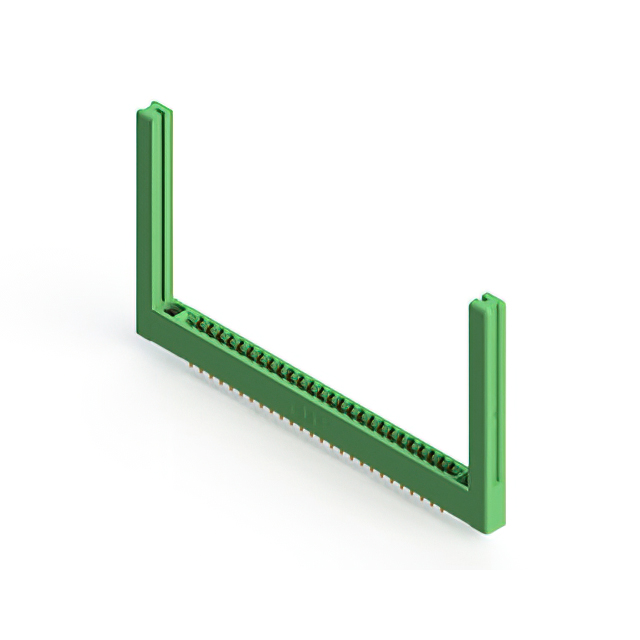

EDAC Inc. 305-052-521-558	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green		Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	3.96 mm	0.156 in	Dual	52
EDAC Inc. 305-052-500-207	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green		Non Specified - Dual Edge	Gold	Solder Eyelet(s)	Semi Bellows	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Panel Mount	3.96 mm	0.156 in	Dual	52

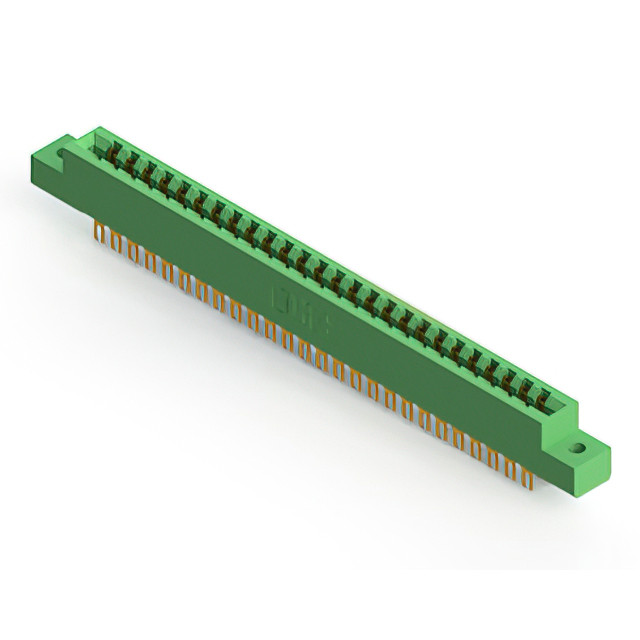

EDAC Inc. 305-052-500-502	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green		Non Specified - Dual Edge	Gold	Solder Eyelet(s)	Semi Bellows	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Panel Mount	3.96 mm	0.156 in	Dual	52	3.25 mm	0.128 "
EDAC Inc. 305-052-521-507	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green		Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Panel Mount Through Hole	3.96 mm	0.156 in	Dual	52

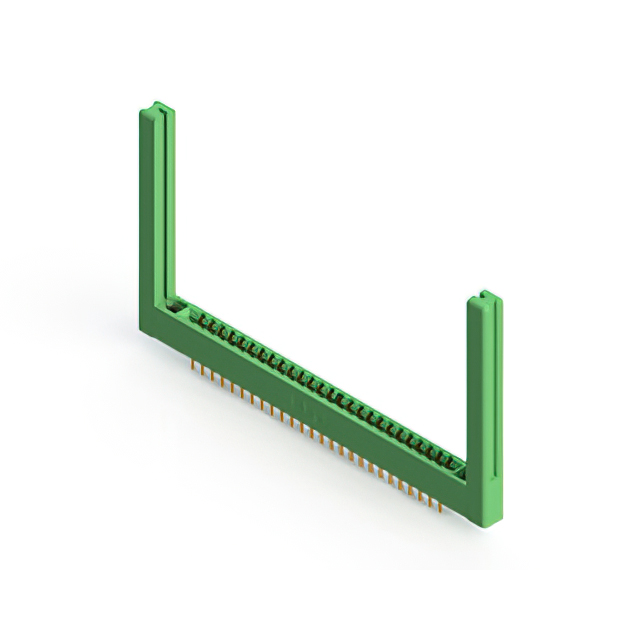

EDAC Inc. 305-052-520-558	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green		Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	3.96 mm	0.156 in	Dual	52

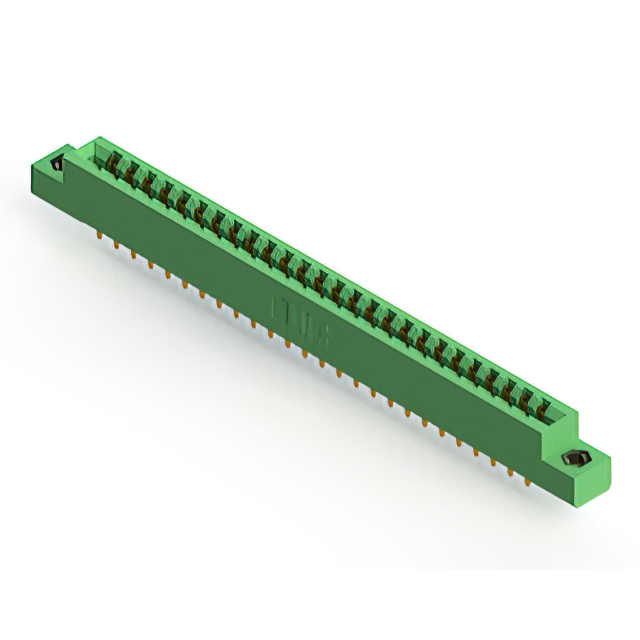

EDAC Inc. 305-052-521-207	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green		Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Panel Mount Through Hole	3.96 mm	0.156 in	Dual	52
EDAC Inc. 305-052-555-204	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Card Extender	Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	3.96 mm	0.156 in	Dual	52	3.96 mm	0.156 "
EDAC Inc. 305-052-520-507	2	Polyester Thermoplastic	2	-40 C	105 ░C	Copper Alloy	Female	26	0.07 in 1.78 mm	0.054 in 1.37 mm	Green		Non Specified - Dual Edge	Gold	Solder	Semi Bellows	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Panel Mount Through Hole	3.96 mm	0.156 in	Dual	52
