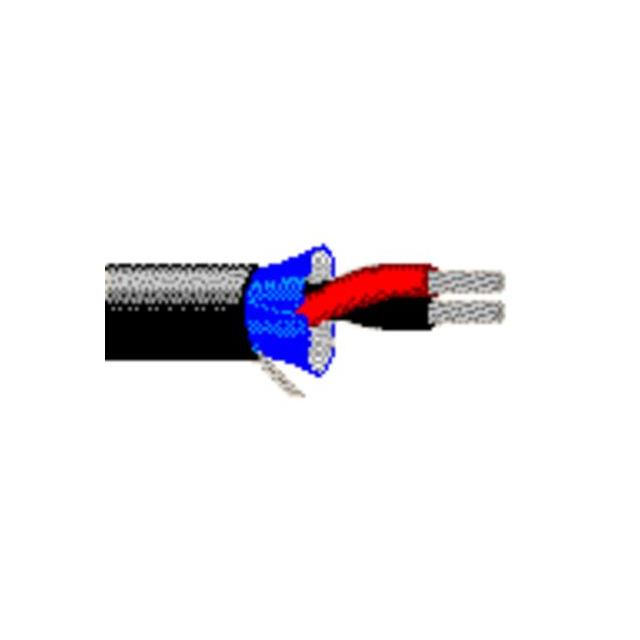

1508A Series
Manufacturer: Belden Inc.
Beta
⌘K
1 PR #24 PO FS PVC
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket Color | Conductor Insulation | Cable Type | Usage | Number of Conductors | Voltage | Length | Length | Shield Type | Wire Gauge | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Poly-Vinyl Chloride (PVC) Polyester | 100 % | 7 | 32 AWG | -20 ░C | 60 °C | Copper Tinned | Black | Polypropylene (PP) | Multi-Conductor | Audio Control | 2 | 300 VDC | 152.4 m | 500 ft | Foil | 24 AWG | Drain Wire | 0.61 mm | 0.024 in | Poly-Vinyl Chloride (PVC) | 3.33 mm | 0.131 in |
