2842130 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 10P,2MM,BRK HDR,DRVT,2.8,0.1AU,TB W/CAP

Part	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish - Mating	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Overall Contact Length	Overall Contact Length	Number of Rows	Insulation Height	Insulation Height	Termination	Contact Shape	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Current Rating (Amps)	Number of Positions	Connector Type	Insulation Material	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Shrouding	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions

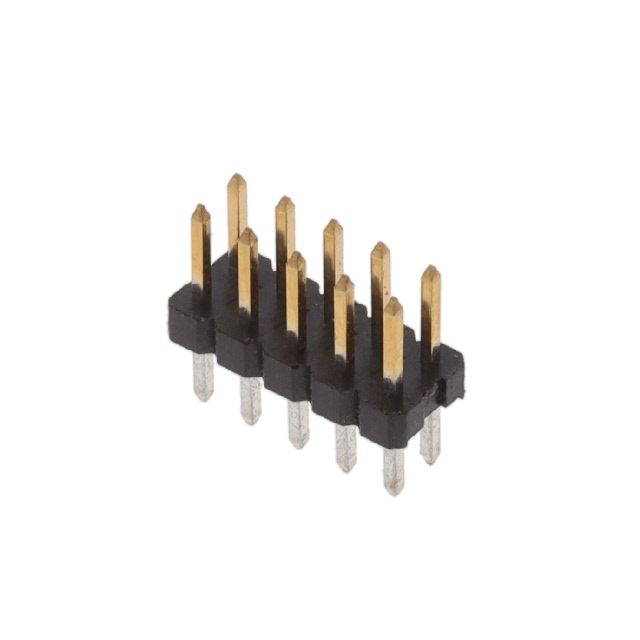

TE Connectivity Raychem Cable Protection 2842130-5	0.079 in	2 mm	Black	4 mm	0.157 in	Male Pin	Gold	All	0.079 in	2 mm	125 VAC	8.3 mm	0.327 in	2	1.5 mm	0.059 "	Solder	Square	Copper Alloy	125 °C	-40 °C	Push-Pull	2 A	10	Breakaway Header	Thermoplastic	Through Hole	Tin	3.94 µin	0.1 µm	Pick and Place	Unshrouded	UL94 V-0	0.11 in	2.79 mm	2 çm	78.7 çin

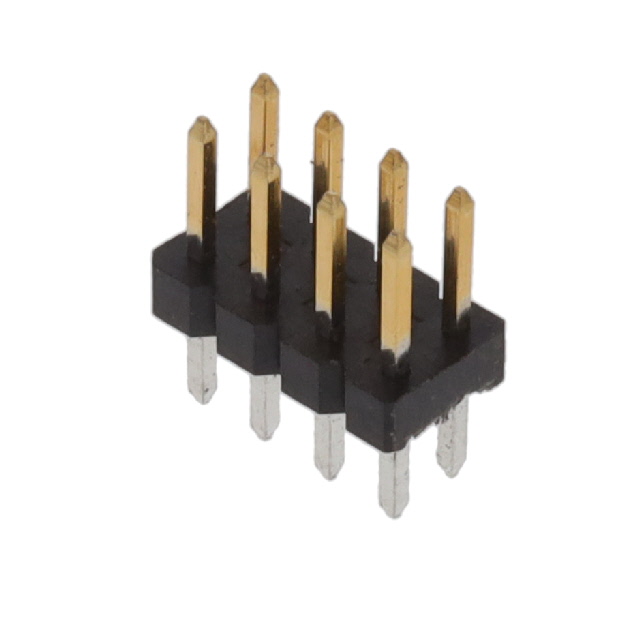

TE Connectivity Raychem Cable Protection 2842130-4	0.079 in	2 mm	Black	4 mm	0.157 in	Male Pin	Gold	All	0.079 in	2 mm	125 VAC	8.3 mm	0.327 in	2	1.5 mm	0.059 "	Solder	Square	Copper Alloy	125 °C	-40 °C	Push-Pull	2 A	8	Breakaway Header	Thermoplastic	Through Hole	Tin	3.94 µin	0.1 µm	Pick and Place	Unshrouded	UL94 V-0	0.11 in	2.79 mm	2 çm	78.7 çin

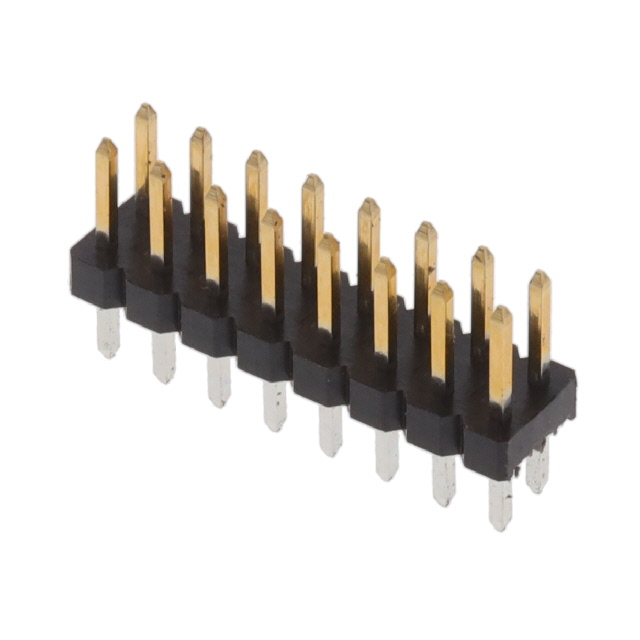

TE Connectivity Raychem Cable Protection 2842130-8	0.079 in	2 mm	Black	4 mm	0.157 in	Male Pin	Gold	All	0.079 in	2 mm	125 VAC	8.3 mm	0.327 in	2	1.5 mm	0.059 "	Solder	Square	Copper Alloy	125 °C	-40 °C	Push-Pull	2 A		Breakaway Header	Thermoplastic	Through Hole	Tin	3.94 µin	0.1 µm	Pick and Place	Unshrouded	UL94 V-0	0.11 in	2.79 mm	2 çm	78.7 çin	16
TE Connectivity Raychem Cable Protection 1-2842130-0	0.079 in	2 mm	Black	4 mm	0.157 in	Male Pin	Gold	All	0.079 in	2 mm	125 VAC	8.3 mm	0.327 in	2	1.5 mm	0.059 "	Solder	Square	Copper Alloy	125 °C	-40 °C	Push-Pull	2 A	20	Breakaway Header	Thermoplastic	Through Hole	Tin	3.94 µin	0.1 µm	Pick and Place	Unshrouded	UL94 V-0	0.11 in	2.79 mm	2 çm	78.7 çin

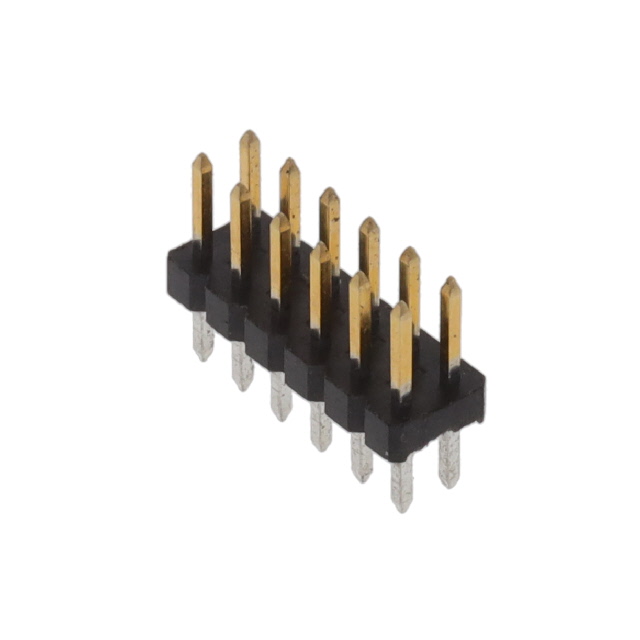

TE Connectivity Raychem Cable Protection 2842130-6	0.079 in	2 mm	Black	4 mm	0.157 in	Male Pin	Gold	All	0.079 in	2 mm	125 VAC	8.3 mm	0.327 in	2	1.5 mm	0.059 "	Solder	Square	Copper Alloy	125 °C	-40 °C	Push-Pull	2 A	12	Breakaway Header	Thermoplastic	Through Hole	Tin	3.94 µin	0.1 µm	Pick and Place	Unshrouded	UL94 V-0	0.11 in	2.79 mm	2 çm	78.7 çin

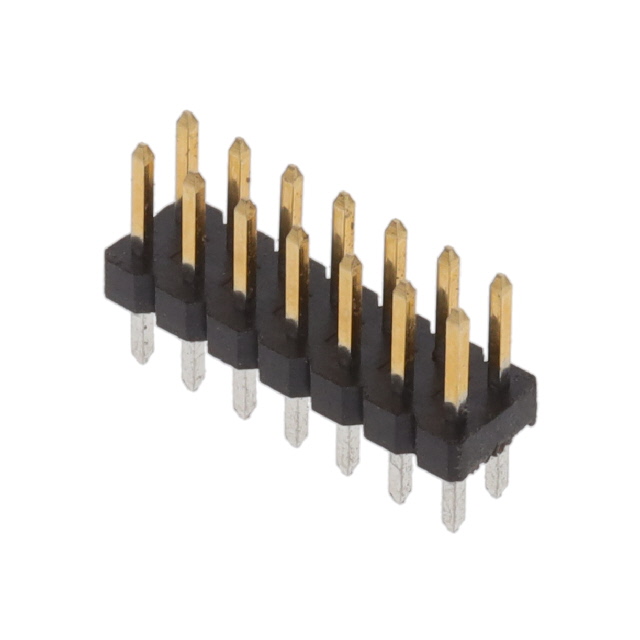

TE Connectivity Raychem Cable Protection 2842130-7	0.079 in	2 mm	Black	4 mm	0.157 in	Male Pin	Gold	All	0.079 in	2 mm	125 VAC	8.3 mm	0.327 in	2	1.5 mm	0.059 "	Solder	Square	Copper Alloy	125 °C	-40 °C	Push-Pull	2 A	14	Breakaway Header	Thermoplastic	Through Hole	Tin	3.94 µin	0.1 µm	Pick and Place	Unshrouded	UL94 V-0	0.11 in	2.79 mm	2 çm	78.7 çin
