2047 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, SINGLE ROW, 14 PINS,

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Mounting Type	Termination	Connector Type	Fastening Type	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]
Oupiin 2047-1X14G00S3U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	14	1	-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	13.59 mm	0.535 in	UL94 V-0	All	4.85 mm	0.191 in	Gold	Female Socket
Oupiin 2047-1X10G00S1U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	10	1	-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	11.05 mm	0.435 "	UL94 V-0	All			Gold	Female Socket	2.5 mm	0.098 in
Oupiin 2047-2X32G00S5U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	64		-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	11.05 mm	0.435 "	UL94 V-0	All			Gold	Female Socket Forked	12.19 mm	0.48 in	0.1 in	2.54 mm	2
Oupiin 2047-2X05G00S3U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	10		-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	13.59 mm	0.535 in	UL94 V-0	All	4.85 mm	0.191 in	Gold	Female Socket Forked			0.1 in	2.54 mm	2
Oupiin 2047-2X25G00S3U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	50		-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	13.59 mm	0.535 in	UL94 V-0	All	4.85 mm	0.191 in	Gold	Female Socket Forked			0.1 in	2.54 mm	2
Oupiin 2047-2X20G10S3U	Square	Polybutylene Terephthalate (PBT)		Brass	2 A		Gold	Black	40		-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	13.59 mm	0.535 in	UL94 V-0	All	4.85 mm	0.191 in	Gold	Female Socket Forked			0.1 in	2.54 mm	2	10 Áin	0.25 çm	0.25 µm	10 µin
Oupiin 2047-2X20G00S1U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	40		-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	11.05 mm	0.435 "	UL94 V-0	All			Gold	Female Socket Forked	2.5 mm	0.098 in	0.1 in	2.54 mm	2

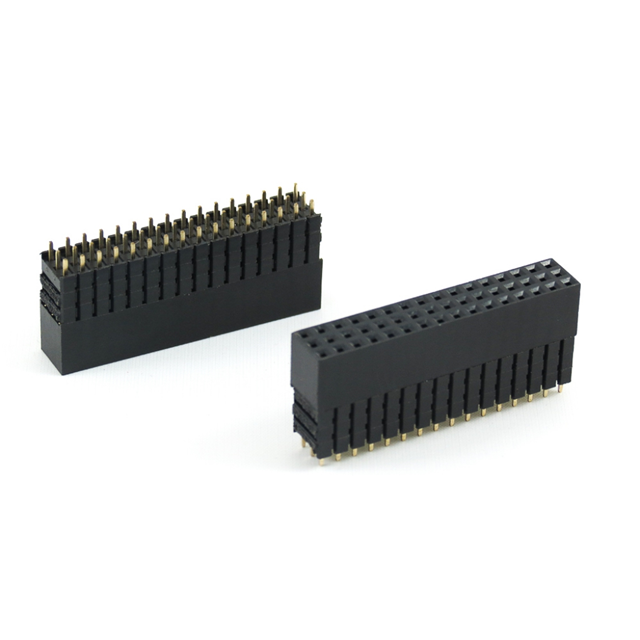

Oupiin 2047-3X16G00S4U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	48		-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull			UL94 V-0	All		0.091 "	Gold	Female Socket	2.3 mm		0.1 in	2.54 mm	3					0.635 in	16.13 mm
Oupiin 2047-2X32G00S1U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black	64		-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	11.05 mm	0.435 "	UL94 V-0	All			Gold	Female Socket Forked	2.5 mm	0.098 in	0.1 in	2.54 mm	2
Oupiin 2047-1X03G00S1U	Square	Polybutylene Terephthalate (PBT)	Flash	Brass	2 A	Flash	Gold	Black		1	-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	Solder	Elevated Socket	Push-Pull	11.05 mm	0.435 "	UL94 V-0	All			Gold	Female Socket	2.5 mm	0.098 in
