PPPC051 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

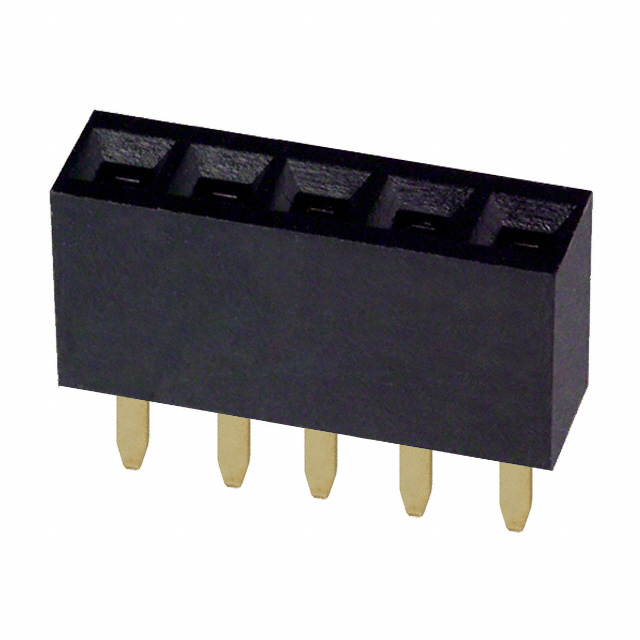

CONN HDR 5POS 0.1 GOLD PCB
| Part | Contact Shape | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Type | Insulation Color | Voltage Rating | Fastening Type | Contact Finish Thickness - Mating | Connector Type | Number of Positions Loaded | Mounting Type | Contact Finish - Mating | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Finish - Post | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Polyester | Flash | Female Socket | Black | 250 V | Push-Pull | Flash | Header | All | Through Hole | Gold | 3 A | 0.126 " | 3.2 mm | Solder | 5 | 0.1 " | 2.54 mm | 0.335 " | 8.51 mm | 1 | -40 C | 105 ░C | UL94 V-0 | Gold | ||
 Sullins Connector Solutions | Square | Phosphor Bronze | Polyester | Flash | Female Socket | Black | 250 V | Push-Pull | Flash | Header | All | Right Angle Through Hole | Gold | 3 A | Solder | 5 | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 1 | -40 C | 105 ░C | UL94 V-0 | Gold | 0.124 in | 3.15 mm |
