BQ24100 Series
Manufacturer: Texas Instruments
Beta
⌘K

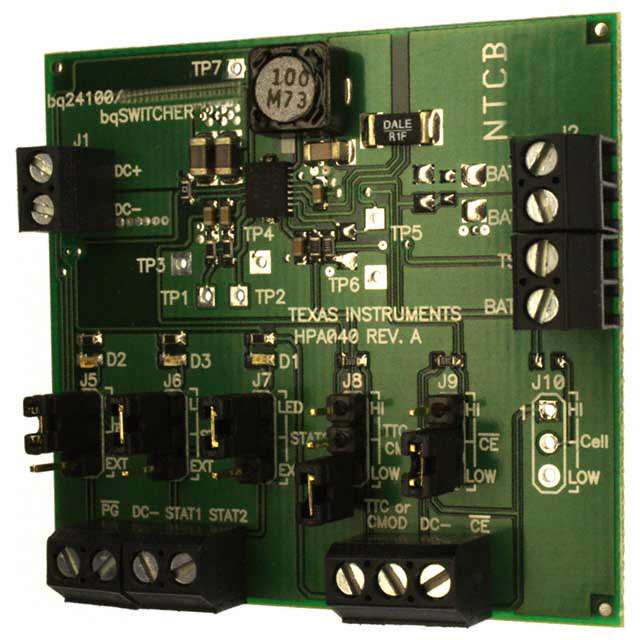

EVALUATION MODULE FOR BQ24100
| Part | Utilized IC / Part | Function | Embedded | Secondary Attributes | Type | Supplied Contents | Primary Attributes | Voltage - Supply (Max) [Max] | Fault Protection | Battery Chemistry | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Battery Pack Voltage | Programmable Features | Number of Cells | Mounting Type | Current - Charging | Charge Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | BQ24100 | Battery Charger | Cell Temperature Monitoring Safety Timer Status LEDs | Power Management | Board(s) | Li-Ion / Li-Pol (1 Cell) | ||||||||||||||
 Texas Instruments | 16 V | Over Temperature Over Voltage | Lithium Ion/Polymer | 85 °C | -40 °C | 20-VQFN (3.5x4.5) | 20-VFQFN Exposed Pad | 4.2 V | Current Timer | 1 | Surface Mount | Constant - Programmable | 2 A |
