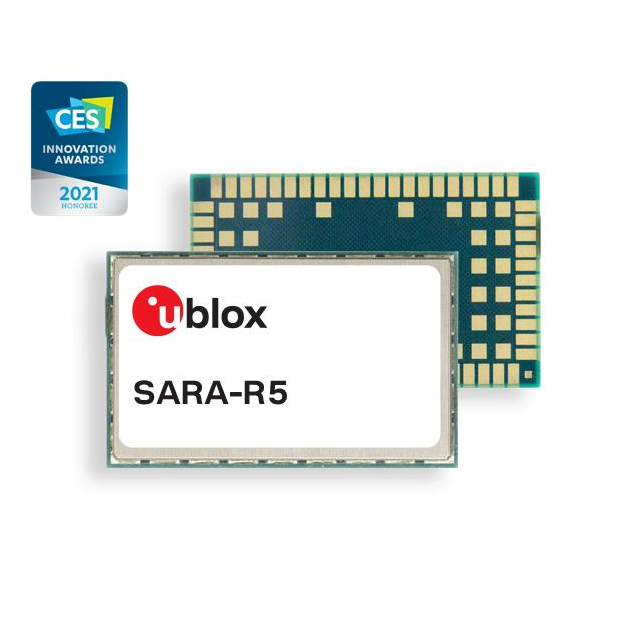

SARA-R510 Series

Manufacturer: u-blox

Catalog

RF TXRX MOD CELL NAV SMD

Part	Sensitivity	RF Family/Standard	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Data Rate	Antenna Type	Protocol	Current - Receiving (Min)	Current - Receiving (Max)	Utilized IC / Part	Current - Transmitting (Max)	Current - Transmitting (Min)	Power - Output	Frequency	Frequency	Serial Interfaces	Package / Case
u-blox SARA-R510M8S-01B	-167 dBm	Cellular Navigation	4.4 V	3.3 V	-40 °C	85 °C	Surface Mount	1.2 Mbps	Antenna Not Included	5G BeiDou Galileo GLONASS GNSS GPS LTE	95 mA	195 mA	UBX-R5	395 mA	95 mA	23 dBm	1.7GHz 1.8GHz 1.9GHz 2.1GHz 600MHz 700MHz 750MHz 800MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 600 MHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz	GPIO I2C I2S SDIO SPI UART USB	96-SMD Module

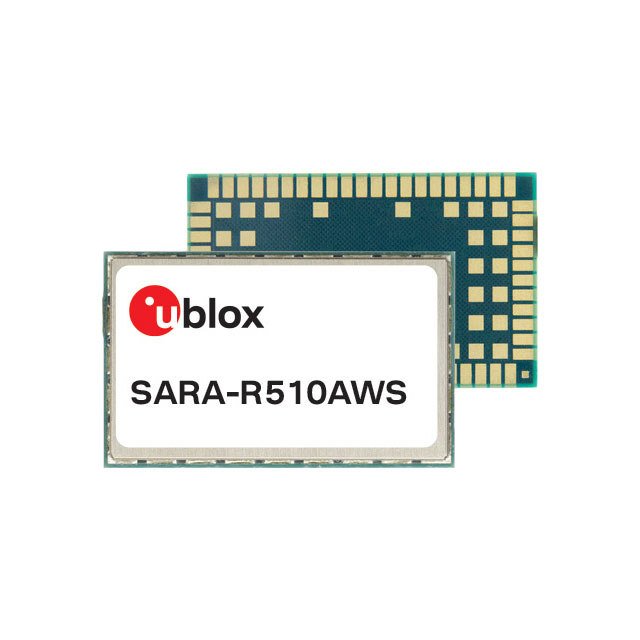

u-blox SARA-R510AWS-01B		Cellular	4.5 V	3 V	-40 °C	85 °C	Surface Mount		Antenna Not Included	5G LTE						23 dBm			GPIO I2C UART USB	96-SMD Module
u-blox SARA-R510S-01B	-167 dBm	Cellular Navigation	4.4 V	3.3 V	-40 °C	85 °C	Surface Mount	1.2 Mbps	Antenna Not Included	5G BeiDou Galileo GLONASS GNSS GPS LTE	95 mA	195 mA	UBX-R5	395 mA	95 mA	23 dBm	1.7GHz 1.8GHz 1.9GHz 2.1GHz 600MHz 700MHz 750MHz 800MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 600 MHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz	GPIO I2C I2S SDIO SPI UART USB	96-SMD Module
