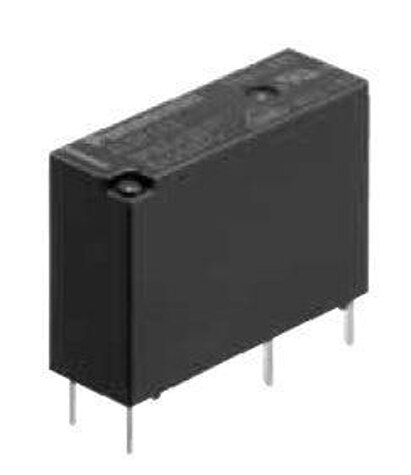

ALDP1F Series

Manufacturer: Panasonic Electronic Components

Catalog

RELAY GEN PURPOSE SPST 5A 24V

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Relay Type	Coil Current	Contact Material	Approval Agency	Must Operate Voltage	Contact Form	Mounting Type	Switching Voltage [Max]	Release Time	Contact Rating (Current)	Operate Time	Must Release Voltage	Coil Insulation	Coil Type	Coil Voltage	Termination Style
Panasonic Electronic Components ALDP1F24W	2.88 kOhms	85 °C	-40 C	1385 VA	General Purpose	8.3 mA	Silver Nickel (AgNi)	CQC cURuus VDE	18 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	1.2 VDC	Class F	Non Latching	24 VDC	PC Pin
Panasonic Electronic Components ALDP1F05W	125 Ohms	85 °C	-40 C	1385 VA	General Purpose	40 mA	Silver Nickel (AgNi)	CQC cURuus VDE	3.75 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.25 VDC	Class F	Non Latching	5 VDC	PC Pin
Panasonic Electronic Components ALDP1F05	125 Ohms	85 °C	-40 C	1385 VA	General Purpose	40 mA	Silver Nickel (AgNi)	CQC cURuus VDE	3.75 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.25 VDC	Class F	Non Latching	5 VDC	PC Pin
Panasonic Electronic Components ALDP1F09W	405 Ohms	85 °C	-40 C	1385 VA	General Purpose	22.2 mA	Silver Nickel (AgNi)	CQC cURuus VDE	6.75 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.45 VDC	Class F	Non Latching	9 VDC	PC Pin
Panasonic Electronic Components ALDP1F09	405 Ohms	85 °C	-40 C	1385 VA	General Purpose	22.2 mA	Silver Nickel (AgNi)	CQC cURuus VDE	6.75 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.45 VDC	Class F	Non Latching	9 VDC	PC Pin
Panasonic Electronic Components ALDP1F06	180 Ohms	85 °C	-40 C	1385 VA	General Purpose	33.3 mA	Silver Nickel (AgNi)	CQC cURuus VDE	4.5 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.3 VDC	Class F	Non Latching		PC Pin
Panasonic Electronic Components ALDP1F12	720 Ohms	85 °C	-40 C	1385 VA	General Purpose	16.7 mA	Silver Nickel (AgNi)	CQC cURuus VDE	9 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.6 VDC	Class F	Non Latching	12 VDC	PC Pin
Panasonic Electronic Components ALDP1F18W	1.62 kOhms	85 °C	-40 C	1385 VA	General Purpose	11.1 mA	Silver Nickel (AgNi)	CQC cURuus VDE	13.5 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.9 VDC	Class F	Non Latching	18 VDC	PC Pin
Panasonic Electronic Components ALDP1F18	1.62 kOhms	85 °C	-40 C	1385 VA	General Purpose	11.1 mA	Silver Nickel (AgNi)	CQC cURuus VDE	13.5 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.9 VDC	Class F	Non Latching	18 VDC	PC Pin
Panasonic Electronic Components ALDP1F06W	180 Ohms	85 °C	-40 C	1385 VA	General Purpose	33.3 mA	Silver Nickel (AgNi)	CQC cURuus VDE	4.5 VDC	SPST-NO (1 Form A)	Through Hole	277 VAC	10 ms	5 A	10 ms	0.3 VDC	Class F	Non Latching		PC Pin
