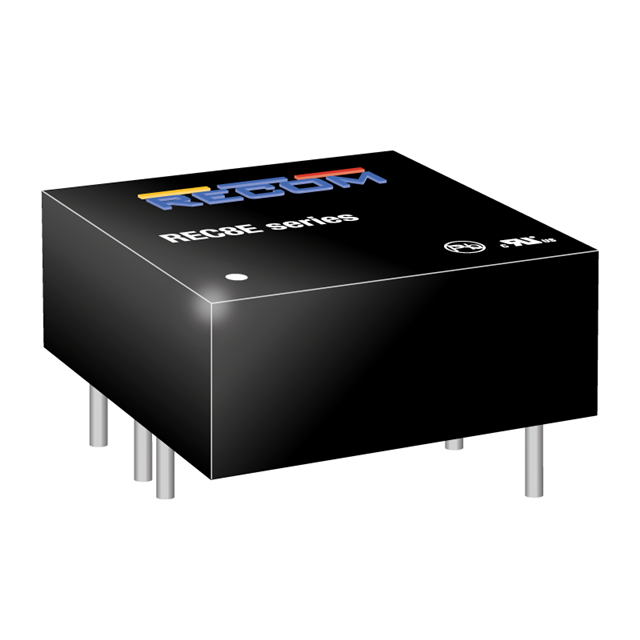

REC8E Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 8W 20-60VIN 12VOUT -12VOUT 333MA
| Part | Approval Agency | Mounting Type | Efficiency | Standard Number | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 2 | Number of Outputs | Voltage - Isolation | Features | Current - Output (Max) | Power (Watts) | Voltage - Output 1 | Voltage - Input (Max) [Max] | Applications | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | CB cURus | Through Hole | 83 % | 62368-1 | Isolated Module | 10.5 mm | 25.4 mm | 0.41 in | 1 " | 1 in | 25.4 mm | 6-DIP Module | 20 V | -40 C | 75 ░C | -12 V | 2 | 1.6 kV | Remote On/Off | 333 mA | 8 W | 12 V | 60 V | ITE (Commercial) | |
Recom Power | CB cURus | Through Hole | 83 % | 62368-1 | Isolated Module | 10.5 mm | 25.4 mm | 0.41 in | 1 " | 1 in | 25.4 mm | 6-DIP Module 5 Leads | 20 V | -40 C | 75 ░C | 1 | 1.6 kV | Remote On/Off | 8 W | 12 V | 60 V | ITE (Commercial) | 666 mA | ||
 Recom Power | CB cURus | Through Hole | 84.5 % | 62368-1 | Isolated Module | 10.5 mm | 25.4 mm | 0.41 in | 1 " | 1 in | 25.4 mm | 6-DIP Module 5 Leads | 9 V | -40 C | 75 ░C | 1 | 1.6 kV | Remote On/Off | 8 W | 12 V | 18 V | ITE (Commercial) | 666 mA |
