FSMC Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Actuator Material	Switch Travel	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Height off PCB, Vertical [z]	Switch Function	Contact Rating @ Voltage	Mounting Type	Illumination	Outline [x]	Outline [y]	Termination Style	Operating Force	Circuit	Actuator Height off PCB, Vertical
TE Connectivity AMP Connectors FSMC	20000 Cycles	Polybutylene Terephthalate (PBT)	0.25 mm	Top Actuated	85 °C	-40 C	Rectangular Button	4.3 mm	Off-Mom	0.05 A 12 VDC	Through Hole	Non-Illuminated	6 mm	3.5 mm	PC Pin	130 gf	SPST-NO
TE Connectivity AMP Connectors FSMCD	100000 Cycles	Polyacetal Resin	0.25 mm	Top Actuated	70 °C	-20 ░C	Standard		Off-Mom	0.05 A 24 VDC	Through Hole	Non-Illuminated	6 mm	6 mm	PC Pin	100 gf	SPST-NO	7.5 mm

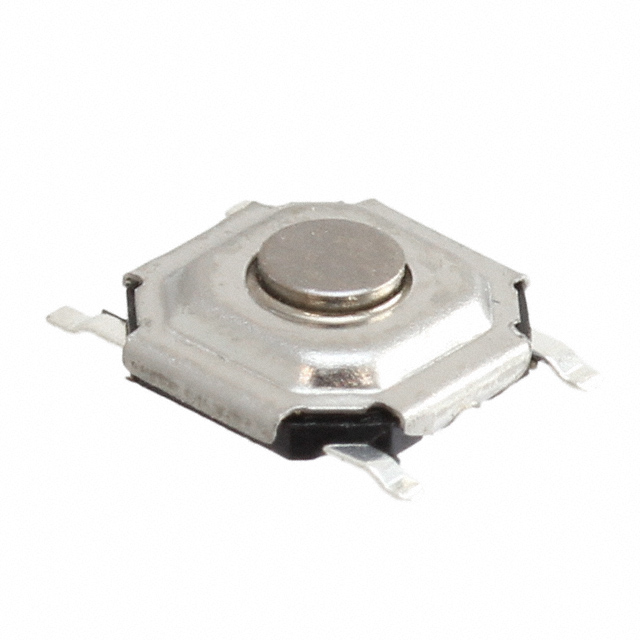

TE Connectivity AMP Connectors FSMCTTR	1000000 Cycles	Aluminum Copper Alloy	0.25 mm	Top Actuated	85 °C	-35 °C	Standard	1.5 mm	Off-Mom	0.02 A 15 VDC	Surface Mount	Non-Illuminated	5 mm	5 mm	Gull Wing	160 gf	SPST-NO
