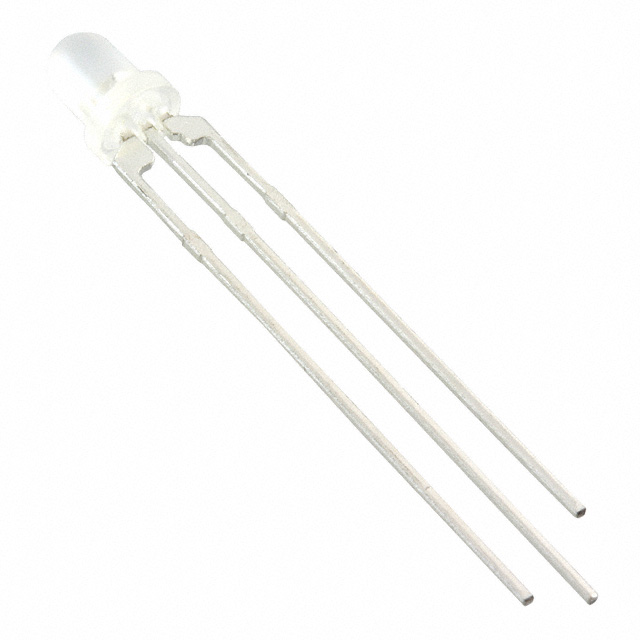

WP115 Series

Catalog

LED BI-COLOR GREEN/RED 565NM/627NM 3-PIN T-1 BULK

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Transparency	Lens Size	Lens Size	Color	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Configuration	Size / Dimension [diameter]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max] [z]	Viewing Angle	Supplier Device Package	Package / Case	Lens Color	Mounting Type	Current - Test	Millicandela Rating	Wavelength - Dominant	Wavelength - Peak	Millicandela Rating [custom]	Lens Type	Voltage Rating	Current

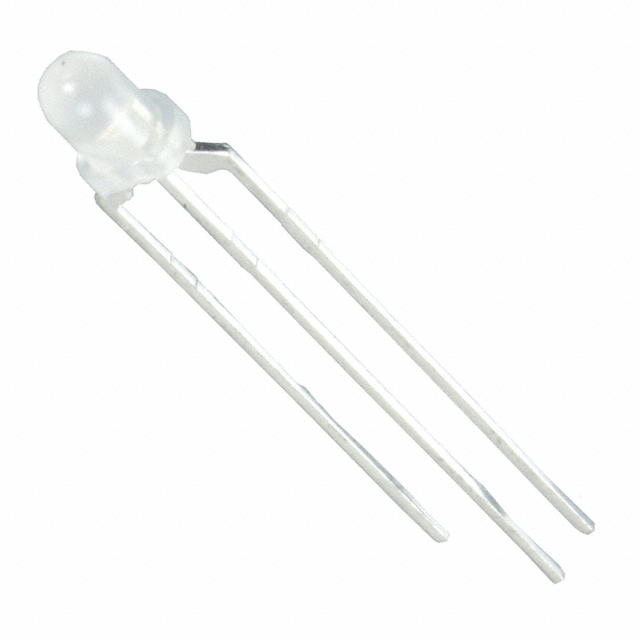

Kingbright WP115WEGW	2 V 2.2 V	568 nm 617 nm	Diffused	3 mm	T-1	Green Red	565 nm 627 nm	20 mcd	40 mcd	Round with Domed Top	Common Cathode	3 mm	20 mA	20 mA	7.83 mm	60 °	T-1	Radial - 3 Leads	White	Through Hole
Kingbright WP115VEYW	2 V 2.1 V		Diffused	3 mm	T-1	Red Yellow	590 nm 627 nm			Round with Domed Top	Common Cathode	3 mm			7.83 mm	60 °	T-1	Radial - 3 Leads	White	Through Hole	20 mA 20 mA	20 mcd 24 mcd	588nm Yellow 617nm Red
Kingbright WP115WEYW	2 V 2.1 V		Diffused	3 mm	T-1	Red Yellow	590 nm 627 nm			Round with Domed Top	Common Cathode	3 mm			7.83 mm	60 °	T-1	Radial - 3 Leads	White	Through Hole	20 mA 20 mA	20 mcd 20 mcd	588nm Yellow 617nm Red
Kingbright WP115VEGW	2 V 2.2 V	568 nm 617 nm	Diffused	3 mm	T-1	Green Red	565 nm 627 nm			Round with Domed Top	Common Cathode	3 mm	20 mA	20 mA	7.83 mm	60 °	T-1	Radial - 3 Leads	White	Through Hole		20 mcd 30 mcd
Kingbright WP115VGYW	2.1 V 2.2 V		Diffused	3 mm	T-1	Green Yellow			30 mcd	Round with Domed Top	Common Cathode	3 mm			7.83 mm	60 °	T-1	Radial - 3 Leads	White	Through Hole	20 mA 20 mA		568nm Green 588nm Yellow	565nm Green 590nm Yellow	24 mcd
Kingbright WP115WUM/EGW				3 mm	T-1	Green Red	565 nm 627 nm			Round with Domed Top	Single					60 °				Right Angle Through Hole		40 mcd 40 mcd				Diffused	2 V 2.2 V	25 mA 30 mA
Kingbright WP115WGYW	2.1 V 2.2 V		Diffused	3 mm	T-1	Green Yellow				Round with Domed Top	Common Cathode	3 mm			7.83 mm	60 °	T-1	Radial - 3 Leads	White	Through Hole	20 mA 20 mA	20 mcd 40 mcd	568nm Green 588nm Yellow	565nm Green 590nm Yellow
