MB2011S Series

Catalog

SWITCH PUSHBUTTON SPDT 6A 125V

...

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Termination Style	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Voltage Rating - DC	Switch Function	Features	Mounting Type	Actuator Marking	Type	Ingress Protection

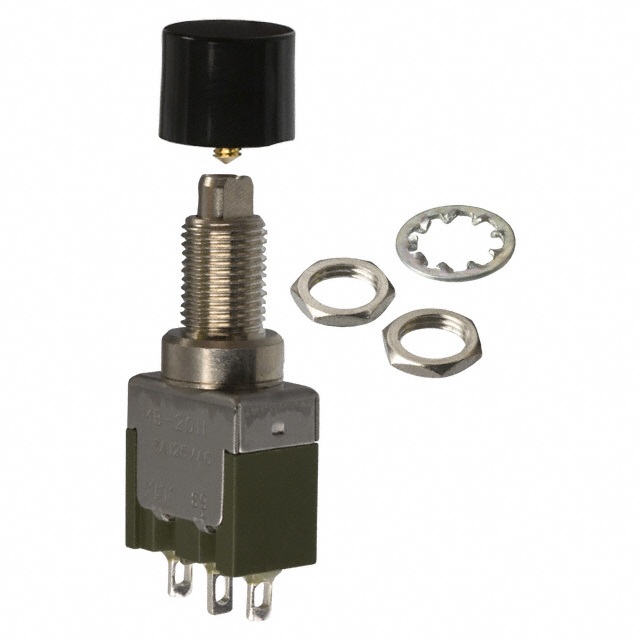

NKK Switches MB2011SS1W01-CA	100000 Cycles	25000 Steps	3 A 6 A	125 V	6.5 mm	Solder Lug	Black	85 °C	-30 ░C	SPDT	Button Round	30 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard
NKK Switches MB2011SS2G30-CC	100000 Cycles	50000 Cycles	0.4 VA	28 V		PC Pin	Red	85 °C	-30 ░C	SPDT	Button Round	28 V	On-Mom	Epoxy Sealed Terminals	Right Angle Through Hole	No Marking	Standard
NKK Switches MB2011SD3G01-CC	50000 Cycles	50000 Cycles	0.4 VA	28 V	6.5 mm	Solder Lug	Red	85 °C	-30 ░C	SPDT	Button Round	28 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard	IP67 - Dust Tight Waterproof
NKK Switches MB2011SS1G01-BC	100000 Cycles	50000 Cycles	0.4 VA	28 V	6.5 mm	Solder Lug	Red	85 °C	-30 ░C	SPDT	Button Round	28 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard
NKK Switches MB2011SS1G03-BB	100000 Cycles	50000 Cycles	0.4 VA	28 V	6.5 mm	PC Pin	White	85 °C	-30 ░C	SPDT	Button Round	28 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard

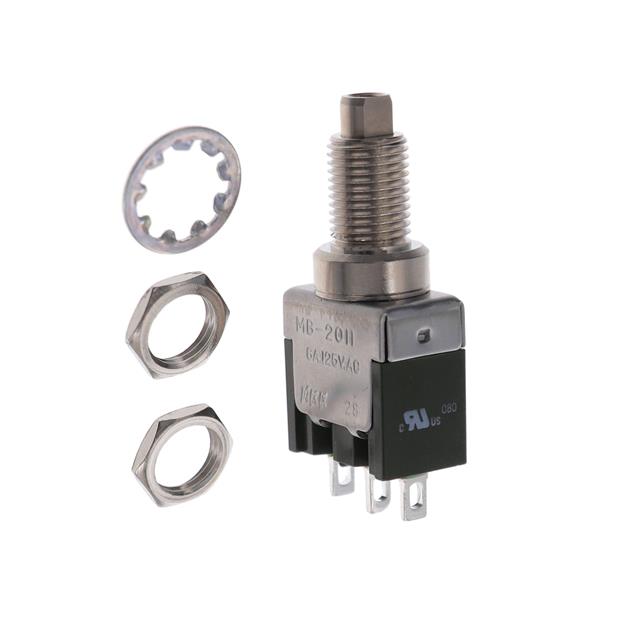

NKK Switches MB2011SS1W01/CUL	100000 Cycles	25000 Steps	3 A 6 A	125 V	6.5 mm	Solder Lug		85 °C	-30 ░C	SPDT	Plunger for Cap	30 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard
NKK Switches MB2011SB1W01-4H-A	100000 Cycles	25000 Steps	3 A 6 A	125 V	12.5 mm	Solder Lug		85 °C	-30 ░C	SPDT	Button Round	30 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard

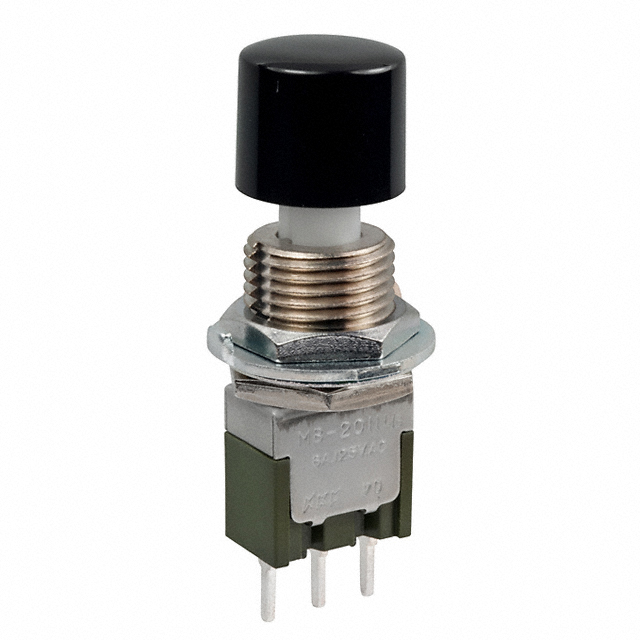

NKK Switches MB2011SB1W03-DA	100000 Cycles	25000 Steps	3 A 6 A	125 V	12.5 mm	PC Pin	Black	85 °C	-30 ░C	SPDT	Button Round	30 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard

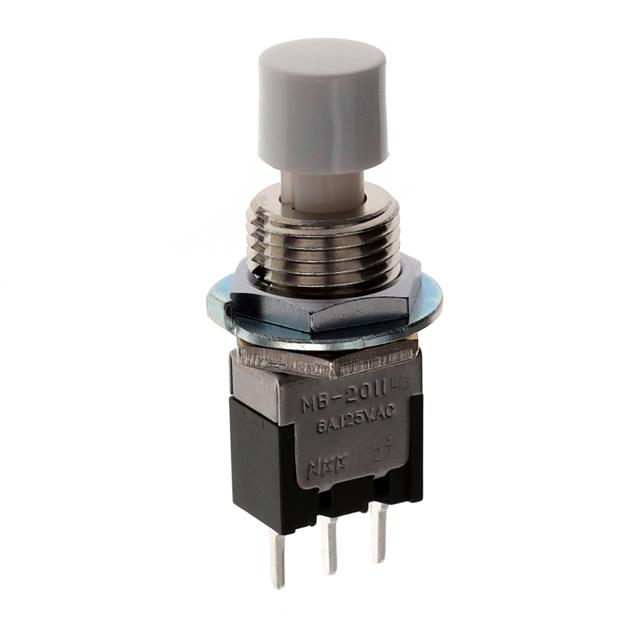

NKK Switches MB2011SB1W03-CB	100000 Cycles	25000 Steps	3 A 6 A	125 V	12.5 mm	PC Pin	White	85 °C	-30 ░C	SPDT	Button Round	30 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard
NKK Switches MB2011SS1W01-BG	100000 Cycles	25000 Steps	3 A 6 A	125 V	6.5 mm	Solder Lug	Blue	85 °C	-30 ░C	SPDT	Button Round	30 V	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	Standard
