RY2110 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

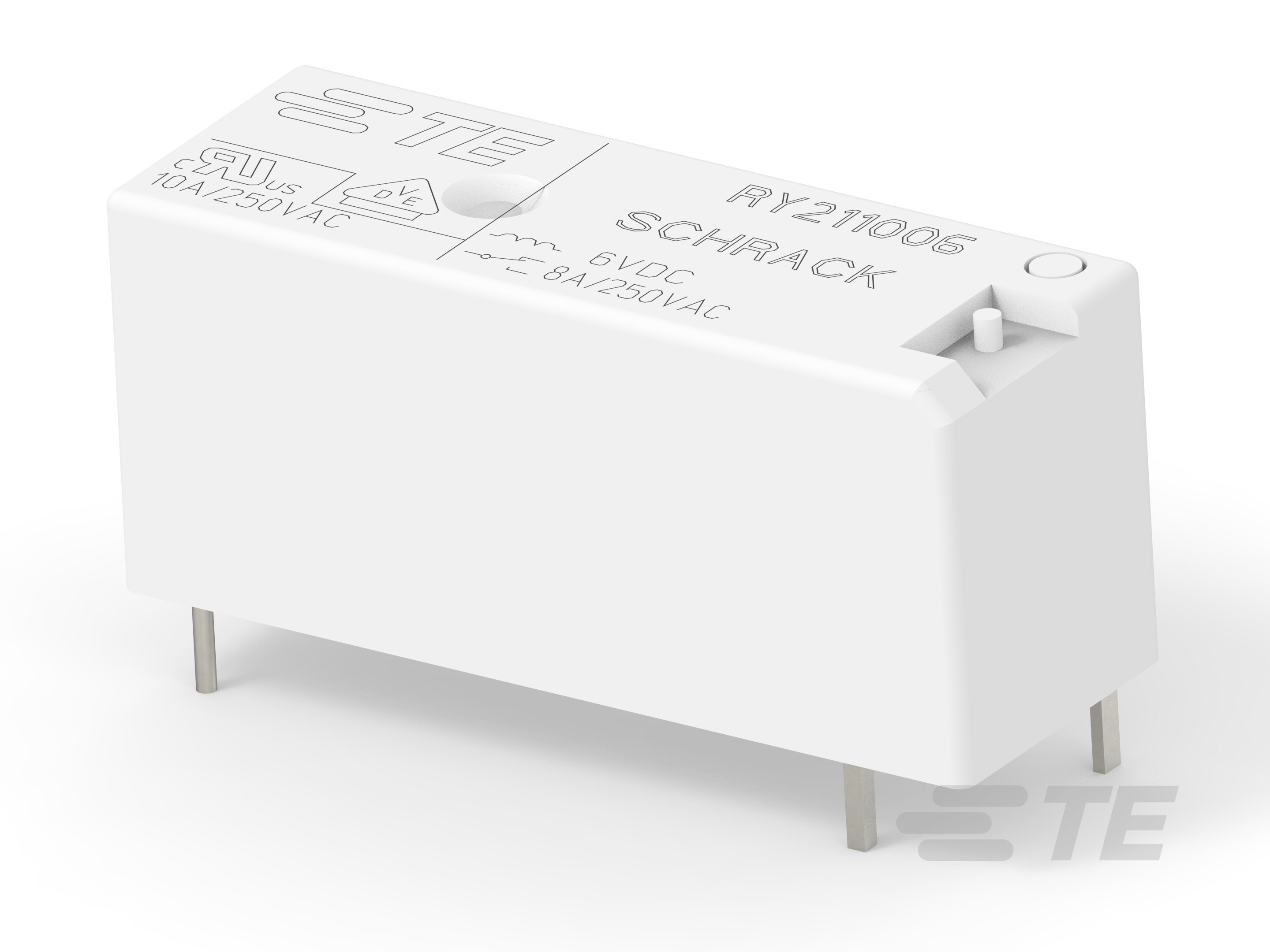

RELAY GEN PURPOSE SPDT 8A 6V
| Part | Coil Resistance | Approval Agency | Operate Time | Release Time | Seal Rating | Coil Current | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Rating (Current) | Contact Form | Mounting Type | Relay Type | Coil Type | Load - Max Switching | Switching Voltage [Max] | Termination Style | Must Release Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 162 Ohms | cURus VDE | 9 ms | 5 ms | Sealed - Flux Protection | 37 mA | 4.2 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 8 A | SPDT (1 Form C) | Through Hole | General Purpose | Non Latching | 3200 VA | 400 VAC | PC Pin | 0.6 VDC | |
 TE Connectivity AMP Connectors | cURus VDE | 9 ms | 5 ms | Sealed - Flux Protection | 14.7 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 8 A | SPDT (1 Form C) | Through Hole | General Purpose | Non Latching | 3200 VA | 400 VAC | PC Pin | 2.1 VDC | 21 VDC | ||
 TE Connectivity AMP Connectors | 2.35 kOhms | cURus VDE | 9 ms | 5 ms | Sealed - Flux Protection | 10.2 mA | 16.8 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 8 A | SPDT (1 Form C) | Through Hole | General Purpose | Non Latching | 3200 VA | 400 VAC | PC Pin | 2.4 VDC | 24 VDC |
 TE Connectivity AMP Connectors | 2.35 kOhms | cURus VDE | 9 ms | 5 ms | Sealed - Flux Protection | 10.2 mA | 16.8 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 8 A | SPDT (1 Form C) | Through Hole | General Purpose | Non Latching | 3200 VA | 400 VAC | PC Pin | 2.4 VDC | 24 VDC |
 TE Connectivity AMP Connectors | 627 Ohms | cURus VDE | 9 ms | 5 ms | Sealed - Flux Protection | 19.2 mA | 8.4 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 8 A | SPDT (1 Form C) | Through Hole | General Purpose | Non Latching | 3200 VA | 400 VAC | PC Pin | 1.2 VDC | 12 VDC |
