10078768 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

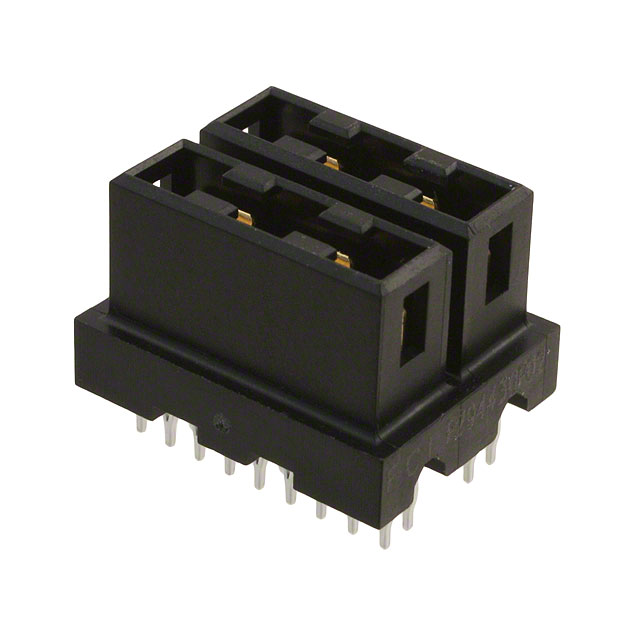

CONN RCPT BLADE PWR 2POS PCB
| Part | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Connector Usage | Number of Rows | Pitch | Pitch | Number of Positions | Number of Positions Loaded | Mounting Type | Termination | Color | Connector Type | Contact Layout, Typical | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 75 A | 105 ░C | -65 ░C | UL94 V-0 | 30 Áin | 0.76 Ám | Daughtercard | 1 | 0.287 in | 7.3 mm | 2 | All | Through Hole | Press-Fit | Black | Receptacle Female Blade Sockets | 2 Power | Blade Power |
