GPTCNH Series
Manufacturer: ZF Electronics
Beta
⌘K

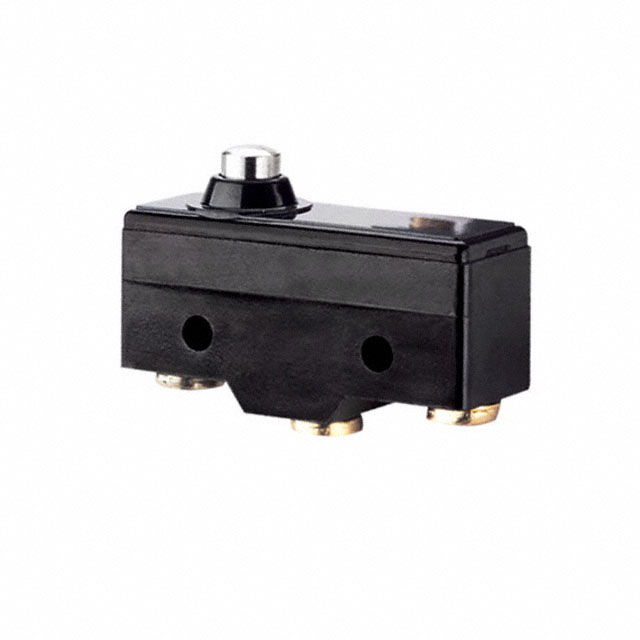

SWITCH SNAP ACTION SPDT 15A 125V
| Part | Mounting Type | Release Force | Operating Position | Operating Position | Actuator Type | Operating Force | Pretravel | Pretravel | Circuit | Current Rating (Amps) | Voltage Rating - AC | Termination Style | Mechanical Life | Switch Function | Differential Travel | Differential Travel | Overtravel [custom] | Overtravel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | Panel Mount | 113 gf | 21 mm | 0.825 in | Overtravel Plunger | 348 gf | 0.015 " | 0.4 mm | SPDT | 15 A | 125 V | Screw Terminal | 20000000 Cycles | On-Mom | 0.05 mm | 0.002 in | 0.217 " | 5.5 mm |
