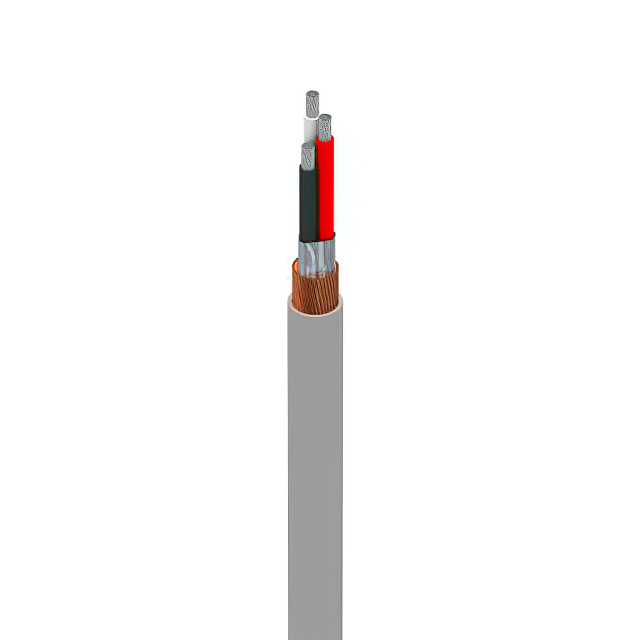

76203WS Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 3COND 24AWG CHROME SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Shield Type | Conductor Insulation | Jacket Color | Length [x] | Length [x] | Jacket (Insulation) Material | Features | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 3 | 1.016 mm | 0.04 in | Multi-Conductor | Foil Spiral | Poly-Vinyl Chloride (PVC) | Chrome | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Oil Resistant | Copper Tinned | 300 VDC | 34 AWG | 10 | 5.06 mm | 0.199 in | 24 AWG | ||
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 3 | 1.016 mm | 0.04 in | Multi-Conductor | Foil Spiral | Poly-Vinyl Chloride (PVC) | Chrome | Poly-Vinyl Chloride (PVC) | Oil Resistant | Copper Tinned | 300 VDC | 34 AWG | 10 | 5.06 mm | 0.199 in | 24 AWG | 304.8 m | 1000 ft |
