AEP310 Series

Catalog

EP RELAY, 10A T ROHS COMPLIANT: YES

Part	Coil Resistance	Coil Type	Load - Max Switching	Coil Voltage	Seal Rating	Contact Form	Must Operate Voltage	Contact Rating (Current)	Mounting Type	Relay Type	Coil Current	Must Release Voltage	Termination Style	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Switching Voltage
Panasonic Electronic Components AEP31048	923.08 Ohms	Non Latching	2770 VA	48 VDC	Sealed - Hermetically	SPST-NO (1 Form A)	36 VDC	10 A	Through Hole	General Purpose	26 mA	3.84 VDC	PC Pin	30 ms	80 °C	-40 C	50 ms	277 VAC 400 VDC
Panasonic Electronic Components AEP310X0	8.33 kOhms	Non Latching	27700 VA	100 VDC	Sealed - Hermetically	SPST-NO (1 Form A)	75 VDC	10 A	Through Hole	General Purpose	12 mA	8 VDC	PC Pin	30 ms	80 °C	-40 C	50 ms	277 VAC 400 VDC

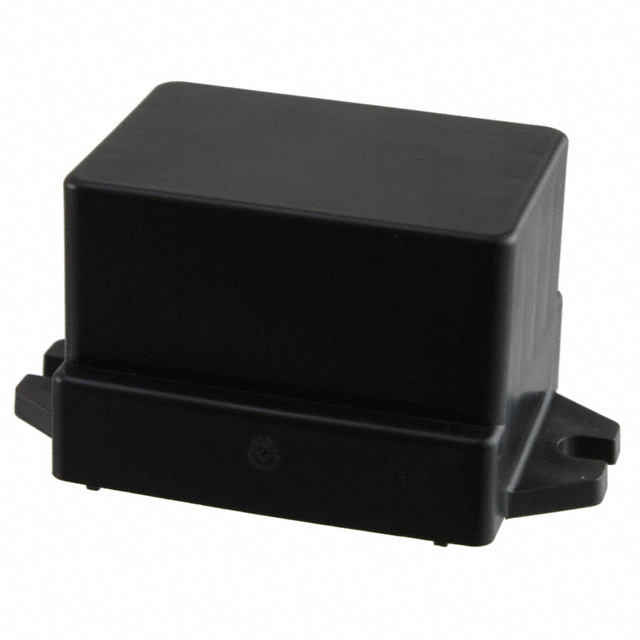

Panasonic Electronic Components AEP31012	116.5 Ohms	Non Latching	2770 VA	12 VDC	Sealed - Hermetically	SPST-NO (1 Form A)	9 VDC	10 A	Through Hole	General Purpose	103 mA	0.96 VDC	PC Pin	30 ms	80 °C	-40 C	50 ms	277 VAC 400 VDC
