OA180AP Series

Catalog

FAN 230AC 176X176X89MM IP68 TERM

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Termination	Static Pressure	Static Pressure	RPM	Fan Type	Approval Agency	Bearing Type	Power (Watts)	Width [y]	Weight	Weight	Features	Air Flow	Air Flow	Voltage - Rated	Ingress Protection	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Noise	Termination	Size / Dimension [y]	Width [x]	Weight [custom]	Weight [custom]	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature

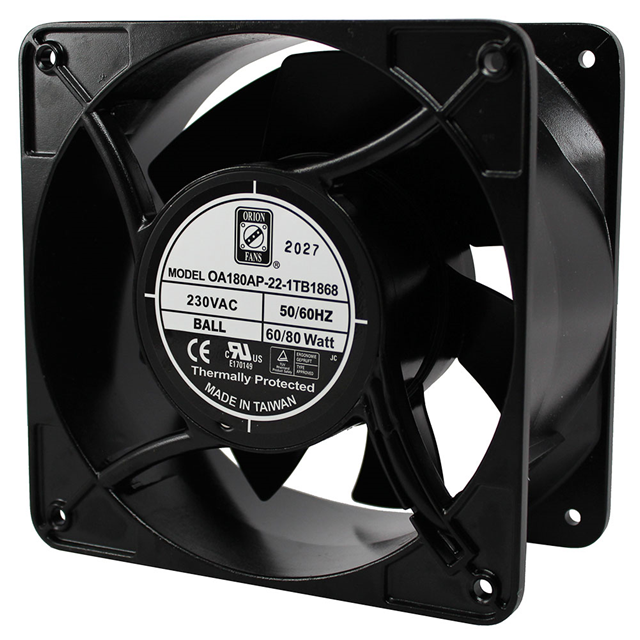

ORION FANS OA180AP-22-1TB1868	50000 Hrs	Aluminum	Steel	2	0.76 in H2O	189.3 Pa	3250 RPM	Tubeaxial	CE cURus TUV UR	Ball	80 W	89 mm	4.1 lbs	1.9 kg	Thermal Overload Protector (TOP)	10.64 m³/min	380 CFM	230 VAC	IP68 - Dust Tight Waterproof	Square	176 mm	176 mm	63 dB
ORION FANS OA180APL-22-1WB1868	50000 Hrs	Aluminum	Steel				3250 RPM	Tubeaxial	CE cURus TUV UR	Ball	80 W				Thermal Overload Protector (TOP)	11.2 mł/min	400 CFM	230 VAC	IP68 - Dust Tight Waterproof	Square		180 mm	65 dB	2 Wire Leads	180 mm	65 mm	1.8 kg	4 lbs
ORION FANS OA180AP-22-1WB1868	50000 Hrs	Aluminum	Steel		0.76 in H2O	189.3 Pa	3250 RPM	Tubeaxial	CE cURus TUV UR	Ball	80 W	89 mm	4.1 lbs	1.9 kg	Thermal Overload Protector (TOP)	10.64 m³/min	380 CFM	230 VAC	IP68 - Dust Tight Waterproof	Square	176 mm	176 mm	63 dB	2 Wire Leads

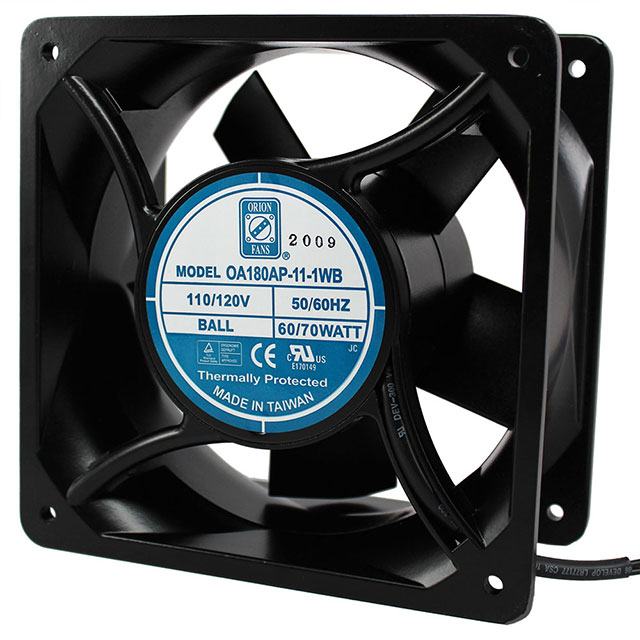

ORION FANS OA180AP-11-1WB	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)		0.84 in H2O	209.2 Pa	3175 RPM	Tubeaxial	CE cURus TUV UR	Ball	70 W	89 mm			Thermal Overload Protector (TOP)	11.45 mł/min	409 CFM	115 VAC		Square		180 mm	62 dB(A)	2 Wire Leads	180 mm		1.8 kg	4 lbs	120 VAC	100 VAC	-20 ░C	70 °C

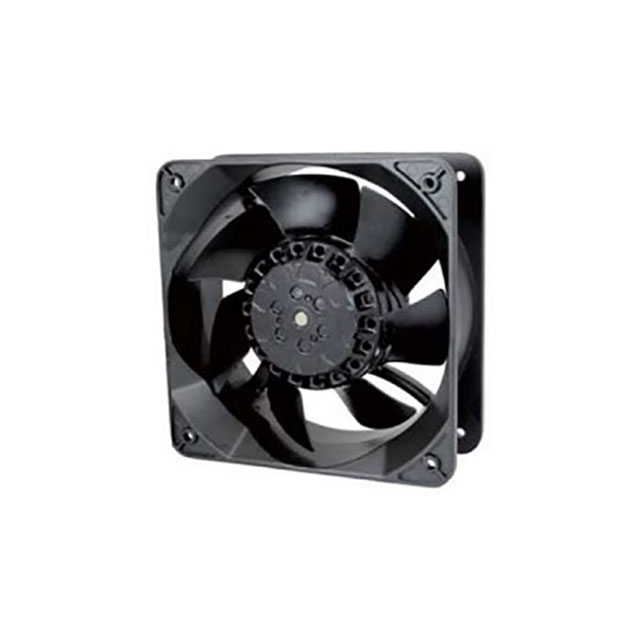

ORION FANS OA180APL-22-1WB1869K	50000 Hrs	Aluminum	Steel				3250 RPM	Tubeaxial	CE cURus TUV UR	Ball	80 W				Thermal Overload Protector (TOP)	11.2 mł/min	400 CFM	230 VAC	IP69K	Square		180 mm	65 dB	2 Wire Leads	180 mm	65 mm	1.8 kg	4 lbs			-20 ░C	65 °C	(-20 ~ 65°C)
ORION FANS OA180AP-22-1TB1869K	50000 Hrs	Aluminum	Steel	2	0.76 in H2O	189.3 Pa	3250 RPM	Tubeaxial	CE cURus TUV UR	Ball	80 W	89 mm	4.1 lbs	1.9 kg	Thermal Overload Protector (TOP)	10.64 m³/min	380 CFM	230 VAC	IP69K	Square	176 mm	176 mm	63 dB
ORION FANS OA180APL-11-1WB1868	50000 Hrs	Aluminum	Steel				3250 RPM	Tubeaxial	CE cURus TUV UR	Ball	80 W				Thermal Overload Protector (TOP)	11.2 mł/min	400 CFM	115 VAC	IP68 - Dust Tight Waterproof	Square		180 mm	65 dB	2 Wire Leads	180 mm	65 mm	1.8 kg	4 lbs
ORION FANS OA180APL-11-1TB	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	2	0.83 in H2O	206.7 Pa	3300 RPM	Tubeaxial	cURus TUV	Ball	70 W				Thermal Overload Protector (TOP)	11.34 m³/min	405 CFM	115 VAC		Square		180 mm	60 dB(A)		180 mm	65 mm	1.8 kg	4 lbs	130 VAC	60 VAC	-20 ░C	80 °C

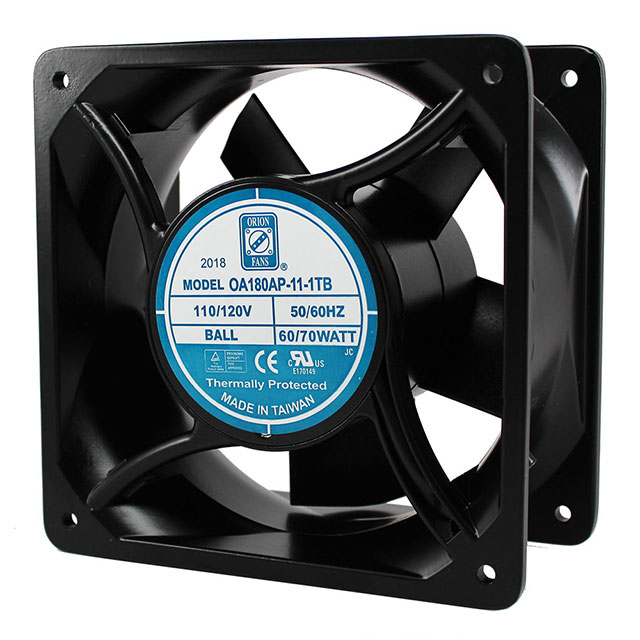

ORION FANS OA180AP-11-1TB	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	2	0.84 in H2O	209.2 Pa	3175 RPM	Tubeaxial	CE cURus TUV UR	Ball	70 W	89 mm			Thermal Overload Protector (TOP)	11.45 mł/min	409 CFM	115 VAC		Square		180 mm	62 dB(A)		180 mm		1.8 kg	4 lbs	120 VAC	100 VAC	-20 ░C	70 °C

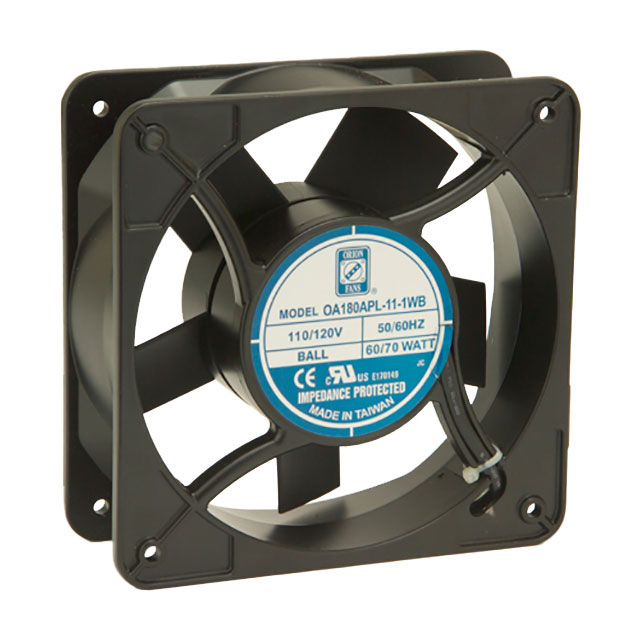

ORION FANS OA180APL-11-1WB	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)		0.83 in H2O	206.7 Pa	3300 RPM	Tubeaxial	cURus TUV	Ball	70 W				Thermal Overload Protector (TOP)	11.34 m³/min	405 CFM	115 VAC		Square		180 mm	60 dB(A)	2 Wire Leads	180 mm	65 mm	1.8 kg	4 lbs	130 VAC	60 VAC	-20 ░C	80 °C
