1571625 Series

Catalog

SWITCH TACTILE OFF (ON) SPST ROUND BUTTON J-LEAD 0.05A 24VDC 0.49N SMD LOOSE

Part	Actuator Material	Mechanical Life	Switch Travel	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Switch Function	Outline [x]	Outline [y]	Mounting Type	Actuator Orientation	Operating Force	Illumination	Actuator Type	Contact Rating @ Voltage	Circuit
TE Connectivity AMP Connectors 1571625-1	Thermoplastic	2000000 Cycles	0.2 mm	J Lead	85 °C	-35 °C	2.5 mm	Off-Mom	6.2 mm	6.2 mm	Surface Mount	Top Actuated	50 gf	Non-Illuminated	Standard	0.05 A 24 VDC	SPST-NO
TE Connectivity AMP Connectors 1571625-8	Thermoplastic	1000000 Cycles	0.2 mm	J Lead	85 °C	-35 °C	2.5 mm	Off-Mom	6.2 mm	6.2 mm	Surface Mount	Top Actuated	260 gf	Non-Illuminated	Standard	0.05 A 24 VDC	SPST-NO
TE Connectivity AMP Connectors 1571625-3	Thermoplastic	1000000 Cycles	0.2 mm	J Lead	85 °C	-35 °C	2.5 mm	Off-Mom	6.2 mm	6.2 mm	Surface Mount	Top Actuated	100 gf	Non-Illuminated	Standard	0.05 A 12 VDC	SPST-NO

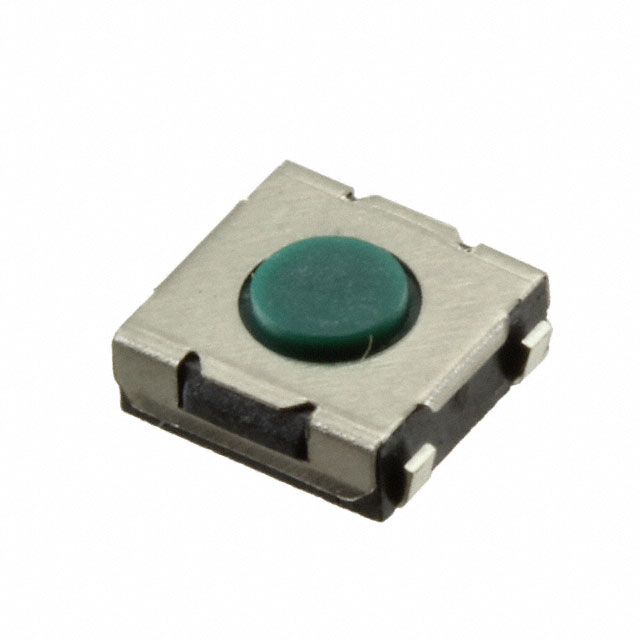

TE Connectivity AMP Connectors 1571625-4	Thermoplastic	1000000 Cycles	0.2 mm	J Lead	85 °C	-35 °C	2.5 mm	Off-Mom	6.2 mm	6.2 mm	Surface Mount	Top Actuated	100 gf	Non-Illuminated	Standard	0.05 A 24 VDC	SPST-NO
