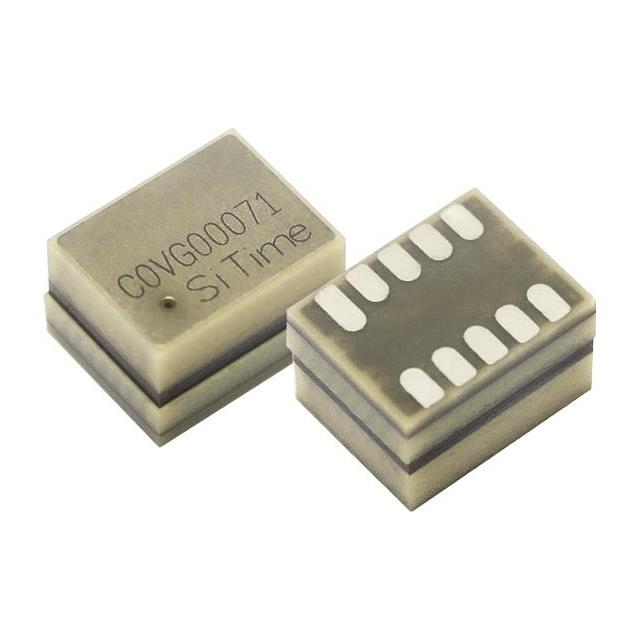

SIT5711 Series
Manufacturer: SiTime
Beta
⌘K
OSCILLATOR MEMS 20MHZ ±1PPM (STABILITY) 15PF LVCMOS 55% 3.3V 10-PIN PCBA SMD T/R
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) | Voltage - Supply | Frequency | Mounting Type | Base Resonator | Operating Temperature [Max] | Operating Temperature [Min] | Frequency Stability | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Type | Package / Case | Function | Output | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.247 in | 6.28 mm | 3.3 V | 20 MHz | Surface Mount | MEMS | 85 °C | -40 C | 5 ppb | 7 | 9 | 10-SMD | OCXO | 10-SMD No Lead | Enable/Disable | LVCMOS | 7 mm | 9 mm | 0.354 in | 0.276 in | ||
0.244 " | 3.3 V | 16.668 MHz | Surface Mount | MEMS | 85 °C | -40 C | 5 ppb | 7 | 9 | 10-SMD | OCXO | 10-SMD No Lead | Enable/Disable | LVCMOS | 7 mm | 9 mm | 0.354 in | 0.276 in | 6.19 mm | ||
0.247 in | 6.28 mm | 3.3 V | 10 MHz | Surface Mount | MEMS | 85 °C | -40 C | 5 ppb | 7 | 9 | 10-SMD | OCXO | 10-SMD No Lead | Enable/Disable | LVCMOS | 7 mm | 9 mm | 0.354 in | 0.276 in |
