M3DYK Series

Catalog

IDC CABLE - MKR10K/MC10M/MPD10K

Part	Features	Connector Type	Contact Finish	Shielding	Cable Termination	Pitch - Connector	Pitch - Connector	Number of Positions	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Number of Rows [custom]	Color	Length	Number of Positions [custom]	Length [x]	Length [x]
3M Electronic Specialty M3DYK-1036R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	10	0.05 in	1.27 mm	30 Áin	0.76 Ám	91.44 cm	3 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-5006R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	50	0.05 in	1.27 mm	30 Áin	0.76 Ám	152.4 mm	0.5 '	2	Multiple Ribbon	6 "
3M Electronic Specialty M3DYK-3436J	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm		0.05 in	1.27 mm	30 Áin	0.76 Ám	91.44 cm	3 ft	2			34
3M Electronic Specialty M3DYK-2006R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	20	0.05 in	1.27 mm	30 Áin	0.76 Ám	152.4 mm	0.5 '	2	Multiple Ribbon	6 "
3M Electronic Specialty M3DYK-1006R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	10	0.05 in	1.27 mm	30 Áin	0.76 Ám	152.4 mm	0.5 '	2	Multiple Ribbon	6 "
3M Electronic Specialty M3DYK-5036R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	50	0.05 in	1.27 mm	30 Áin	0.76 Ám	91.44 cm	3 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-1006J	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	10	0.05 in	1.27 mm	30 Áin	0.76 Ám	152.4 mm	0.5 '	2		6 "

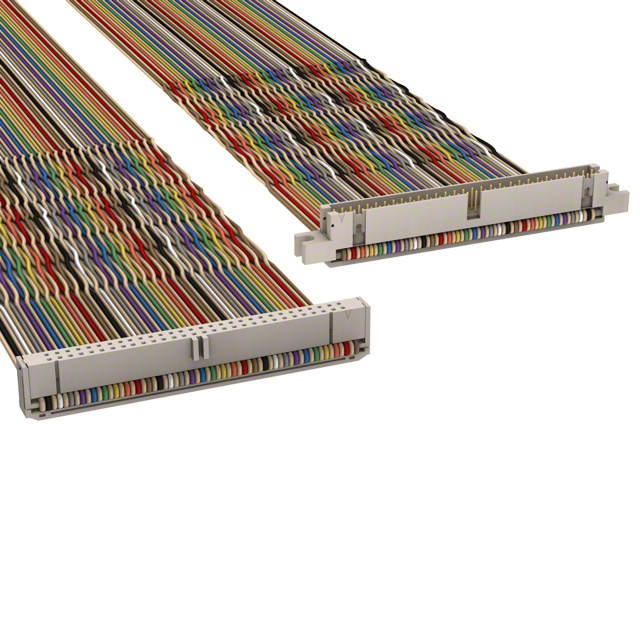

3M Electronic Specialty M3DYK-6060K	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	60	0.05 in	1.27 mm	30 Áin	0.76 Ám	1.52 m	60 in	2	Multiple Twisted Pair (Flat)
3M Electronic Specialty M3DYK-2036R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm	20	0.05 in	1.27 mm	30 Áin	0.76 Ám	91.44 cm	3 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-3418J	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	Gold	Unshielded	IDC	0.1 in	2.54 mm		0.05 in	1.27 mm	30 Áin	0.76 Ám			2			34	457.2 mm	1.5 ft
