EB02 Series

Catalog

CPGI-2-520103-2-10

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Termination	Color	Tab Width [x]	Tab Width [x]	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Terminal Type	Contact Finish	Tab Thickness	Tab Thickness	Gender	Insulation	Number of Wire Entries	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Length - Termination [custom]	Length - Termination [custom]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size
TE Energy & Utilities EB0276-000	3.43 mm	0.135 "	Brass	Crimp	Red	6.35 mm	0.25 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	Standard	Tin	0.81 mm	0.032 in	Male	Fully Insulated
TE Energy & Utilities EB0279-000				Crimp				22 AWG	17.5 AWG	Free Hanging (In-Line)	Standard				Male	Fully Insulated

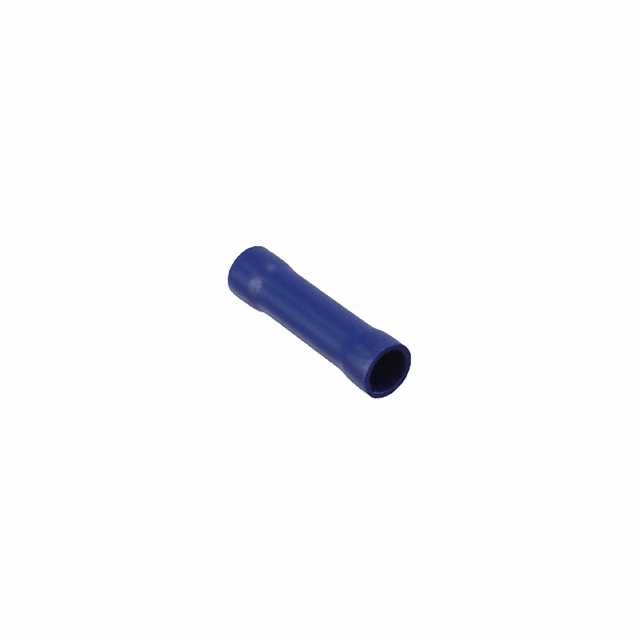

TE Energy & Utilities EB0296-000				Crimp	Blue			2.6 mm˛ 16 AWG	1 mm˛ 14 AWG		Butt Splice Individual Openings Inline					Fully Insulated	2	2.6 mm²	1 mm²

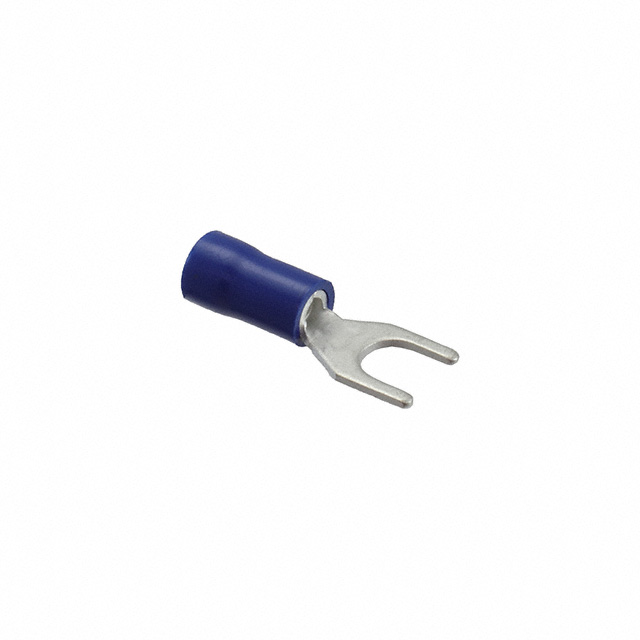

TE Energy & Utilities EB0268-000	4.7 mm	0.185 in	Copper	Crimp	Blue			16 AWG	14 AWG	Free Hanging (In-Line)	Standard	Tin				Insulated				Vinyl	0.433 in	11 mm	8 mm	0.315 in	22.5 mm	0.886 in	M5 Stud
