EDNF14 Series
Manufacturer: Panduit Corp
Beta
⌘K

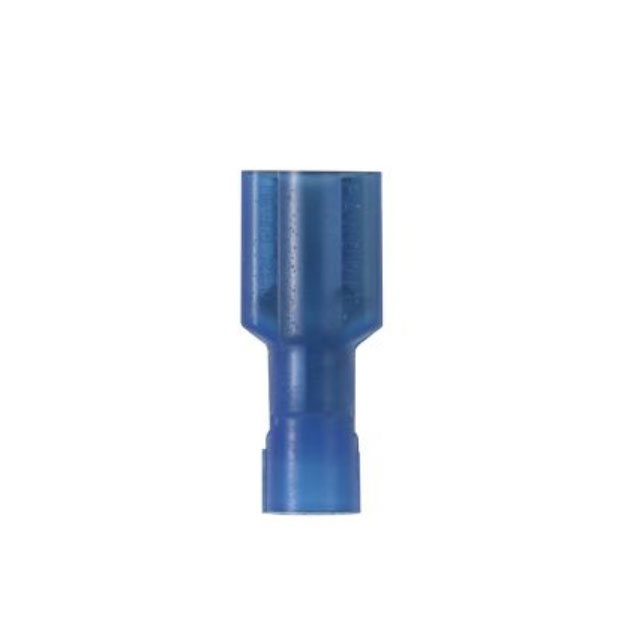

STRONGHOLD FEMALE DISCONNECT
| Part | Insulation Diameter [diameter] | Insulation Diameter | Gender | Terminal Type | Contact Finish | Length - Overall [x] | Length - Overall [x] | Features | Tab Width [x] | Tab Width [x] | Termination | Tab Thickness | Tab Thickness | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Color | Contact Material | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.16 in | 4.06 mm | Female | Standard | Tin | 21.34 mm | 0.84 in | Butted Seam | 6.35 mm | 0.25 in | Crimp | 0.81 mm | 0.032 in | Free Hanging (In-Line) | 14 AWG | 16 AWG | Blue | Brass | Fully Insulated |
