902-0134 Series
Manufacturer: ROBOTIS
Beta
⌘K

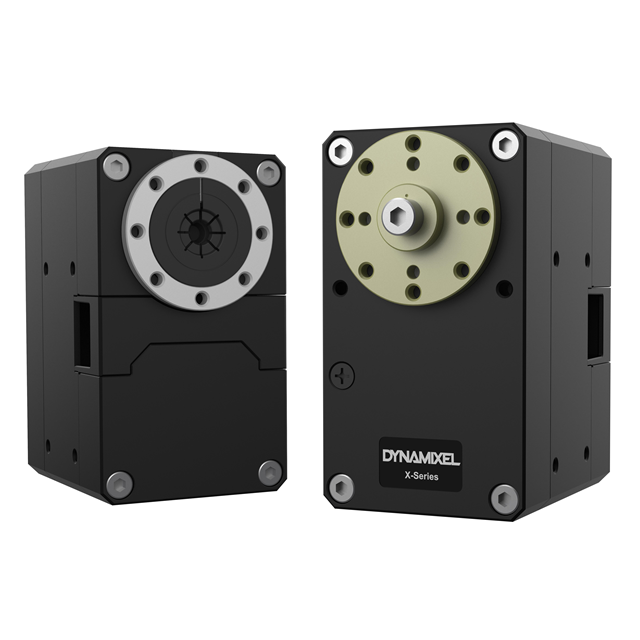

XM540-W150-R DYNAMIXEL SERVO
| Part | Weight | Weight | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Motor Type | Gear Reduction Ratio | Voltage - Rated | Features | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Function | Encoder Type | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | 165 g | 0.364 lb | 0.944 " | 36 mm | 1.417 in | 24 mm | DC Motor | Brushed | 152.3 | 12 VDC | Integrated Controller | 53 RPM | 80 °C | -5 °C | Connector | Servomotor | Absolute | 1005.6 oz-in | 7300 mNm |
