HS2C2F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

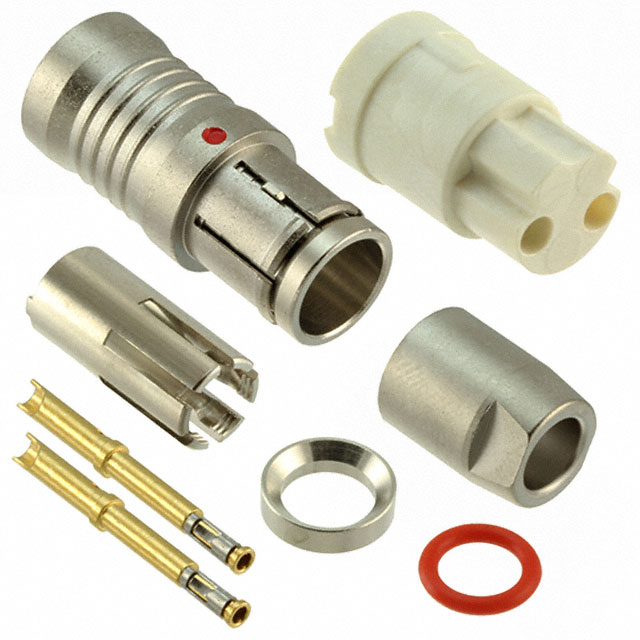

CONN CIRCULAR SKT 2 POS CRIMP ST CABLE MOUNT 2 TERMINAL 1 PORT BULK
| Part | Applications | Insert Material | Contact Material | Termination | Connector Type | Shell Material | Material Flammability Rating | Shell Finish | Contact Finish - Mating | Color | Orientation | Voltage Rating | Primary Material | Fastening Type | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Shielding | Mounting Type | Number of Positions | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Agriculture Audio General Medical Testing Equipment & Measurement | Liquid Crystal Polymer (LCP) | Copper Alloy | Crimp Solder Cup | Plug Female Sockets | Copper Alloy | UL94 HF-1 | Electroless Nickel | Gold | Silver | Keyed | 125 VAC | Metal | Push-Pull | 4.57 mm | 0.18 " | 5.49 mm | 0.216 in | Shielded | Free Hanging (In-Line) | 2 | IP66 IP67 IP68 | -40 C | 135 °C |
