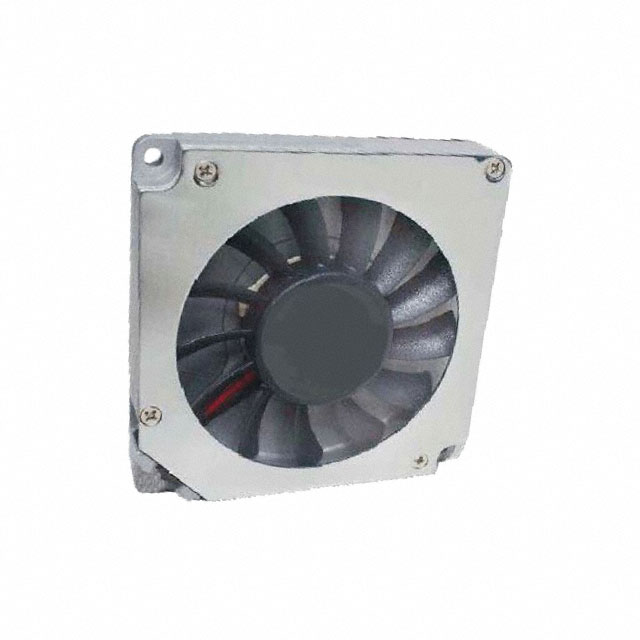

ODB5009 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN BLOWER, 50MM, 0.7W, 12VDC ROHS COMPLIANT: YES
| Part | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Static Pressure | Static Pressure | Fan Type | Air Flow | Air Flow | RPM | Width | Voltage - Rated | Bearing Type | Termination | Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 110 mA | Polybutylene Terephthalate (PBT) | 50000 Hrs | 50 mm | 50 mm | 70 °C | -10 °C | 34 dB(A) | 0.31 in H2O | 77.2 Pa | Blower | 3 CFM | 0.084 mł/min | 5000 RPM | 9 mm | 12 VDC | Ball | 2 Wire Leads | Auto Restart | 700 mW |
 ORION FANS | 100 mA | Polybutylene Terephthalate (PBT) | 50000 Hrs | 50 mm | 50 mm | 70 °C | -10 °C | 34 dB(A) | 0.31 in H2O | 77.2 Pa | Blower | 3 CFM | 0.084 mł/min | 5000 RPM | 9 mm | 5 V | Ball | 2 Wire Leads | Auto Restart | 0.5 W |
