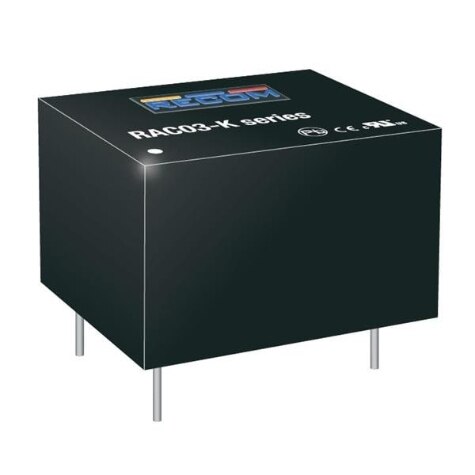

RAC03-K Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 3 W, 18 V, 170 MA

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Features	Number of Outputs	Applications	Voltage - Output 1	Package / Case	Current - Output (Max) [Max]	Mounting Type	Efficiency	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Line Regulation	Load Regulation
Recom Power RAC03-18SK	Enclosed	80 ¯C	-40 °C	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	1	Household Appliances ITE (Commercial)	18 V	4-DIP Module	170 mA	Through Hole	78 %	CE cURus	28.5 mm	23.5 mm	0.7 in	1.12 in	0.93 in	17.9 mm	3.1 W
Recom Power RAC03-05SK	Enclosed	80 ¯C	-40 °C	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	1	Household Appliances ITE (Commercial)	5 V	4-DIP Module	600 mA	Through Hole	74 %	CE cURus	28.5 mm	23.5 mm	0.7 in	1.12 in	0.93 in	17.9 mm	3 W	2.5 %	2.5 %
Recom Power RAC03-3.3SK	Enclosed	80 ¯C	-40 °C	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	1	Household Appliances ITE (Commercial)	3.3 V	4-DIP Module	900 mA	Through Hole	69 %	CE cURus	28.5 mm	23.5 mm	0.7 in	1.12 in	0.93 in	17.9 mm	3 W	2.5 %	2.5 %
Recom Power RAC03-12SK	Enclosed	80 ¯C	-40 °C	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	1	Household Appliances ITE (Commercial)	12 V	4-DIP Module	250 mA	Through Hole	78 %	CE cURus	28.5 mm	23.5 mm	0.7 in	1.12 in	0.93 in	17.9 mm	3 W	2.5 %	2.5 %
Recom Power RAC03-15SK	Enclosed	80 ¯C	-40 °C	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	1	Household Appliances ITE (Commercial)	15 V	4-DIP Module	200 mA	Through Hole	75 %	CE cURus	28.5 mm	23.5 mm	0.7 in	1.12 in	0.93 in	17.9 mm	3 W
Recom Power RAC03-24SK	Enclosed	80 ¯C	-40 °C	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	1	Household Appliances ITE (Commercial)	24 V	4-DIP Module	125 mA	Through Hole	77 %	CE cURus	28.5 mm	23.5 mm	0.7 in	1.12 in	0.93 in	17.9 mm	3 W	2.5 %	2.5 %
