PT Series

Manufacturer: YAGEO

Catalog

CURRENT SENSE RESISTORS - SMD 620 MOHMS 100MW 5 % 200 PPM/C AEC-Q200

Part	Composition	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Resistance	Ratings	Package / Case	Package / Case	Number of Terminations [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Temperature Coefficient	Size / Dimension [y]	Supplier Device Package	Supplier Device Package	Height - Seated (Max)

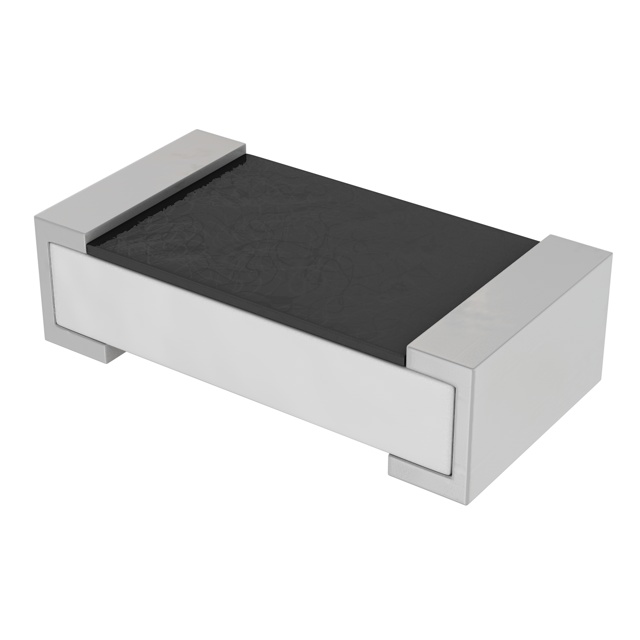

YAGEO PT0603JR-070R62L	Thick Film	0.1 W	0.1 W	0.55 mm	0.022 in	5 %	620 mOhms	AEC-Q200	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	200 ppm/°C
YAGEO PT0603FR-070R348L	Thick Film	0.1 W	0.1 W	0.55 mm	0.022 in	1 %	348 mOhms	AEC-Q200	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	200 ppm/°C

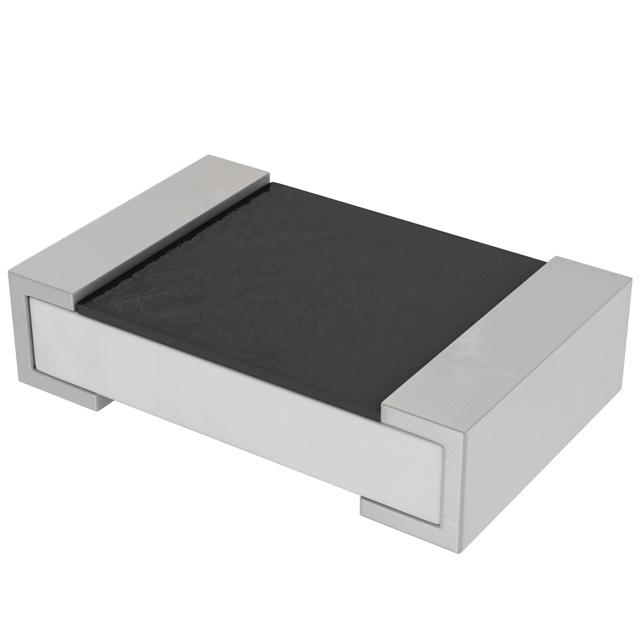

YAGEO PT0805JR-070R33L	Thick Film	0.125 W	0.125 W	0.65 mm	0.026 in	5 %	330 mOhms	AEC-Q200		0805	2	0.049 "	2 mm		0.079 in	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	100 ppm/°C	1.25 mm	0805
YAGEO PT2512FK-070R124L	Thick Film	1 W		0.65 mm	0.026 in	1 %	124 mOhms	AEC-Q200	6332 Metric	2512 2512 (6432 Metric)	2	0.126 in	6.35 mm	3.2 mm	0.25 in	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	75 ppm/°C			2512
YAGEO PT0603FR-070R5L	Thick Film	0.1 W	0.1 W	0.55 mm	0.022 in	1 %	500 mOhms		1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	200 ppm/°C
YAGEO PT1206FR-7W0R2L	Thick Film	0.5 W	0.5 W	0.65 mm	0.026 in	1 %	200 mOhms			1206 (3216 Metric)	2	0.063 "	3.1 mm		0.122 "	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	75 ppm/°C	1.6 mm	1206
YAGEO PT2512FK-070R4L	Thick Film	1 W		0.65 mm	0.026 in	1 %	0.4 Ohms		6332 Metric	2512	2	0.126 in	6.35 mm	3.2 mm	0.25 in	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	75 ppm/°C			2512
YAGEO PT0402JR-070R36L	Thick Film	0.063 W	0.0625 W		0.016 in	5 %	360 mOhms	AEC-Q200		0402 (1005 Metric)	2	0.02 in	1 mm		0.039 "	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	200 ppm/°C	0.5 mm	0402		0.4 mm
YAGEO PT2512FK-7W0R34L	Thick Film	2 W		0.65 mm	0.026 in	1 %	340 mOhms	AEC-Q200		2512 (6432 Metric)	2	0.126 in	6.35 mm	3.2 mm	0.25 in	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	75 ppm/°C			2512
YAGEO PT2512FK-070R5L	Thick Film	1 W		0.65 mm	0.026 in	1 %	500 mOhms		6332 Metric	2512	2	0.126 in	6.35 mm	3.2 mm	0.25 in	155 C	-55 C	Automotive AEC-Q200 Current Sense Moisture Resistant	75 ppm/°C			2512
