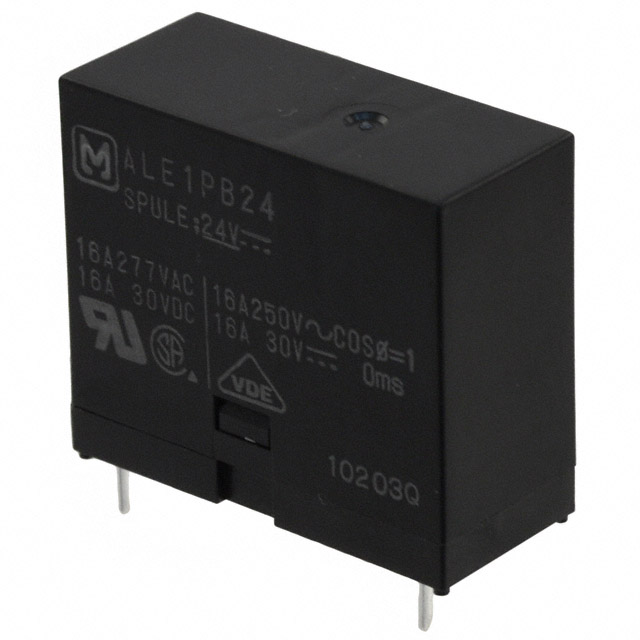

ALE1PF Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 24V
| Part | Coil Resistance | Coil Type | Contact Form | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Release Time | Approval Agency | Coil Voltage | Operate Time | Must Release Voltage | Load - Max Switching | Coil Insulation | Termination Style | Mounting Type | Switching Voltage [Max] | Contact Rating (Current) | Must Operate Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 1440 Ohms | Non Latching | SPST-NO (1 Form A) | General Purpose | 85 °C | -40 C | Silver Tin Oxide (AgSnO) | 20 ms | CSA TUV UR VDE | 24 VDC | 20 ms | 1.2 VDC | 4432 VA | Class F | PC Pin | Through Hole | 277 VAC | 16 A | 18 VDC | 16.7 mA |
Panasonic Electronic Components | 90 Ohms | Non Latching | SPST-NO (1 Form A) | General Purpose | 85 °C | -40 C | Silver Tin Oxide (AgSnO) | 20 ms | CSA TUV UR VDE | 20 ms | 0.3 VDC | 4432 VA | Class F | PC Pin | Through Hole | 277 VAC | 16 A | 4.5 VDC | 66.7 mA |
