DMB Series

Catalog

PLASTIC ENCLOSURE, DIN RAIL MOUNT MULTI-BOARD BOX, UL94V-0, DIN RAIL, ABS, POLYCARBONATE, 90.2 MM

Part	Container Type	Color	Height [z]	Height [z]	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Area (L x W)	Area (L x W)	Features	Design	Size / Dimension [y]	Accessory Type	For Use With/Related Products	Plating	Proto Board Type	Circuit Pattern	Pitch	Pitch	Hole Diameter [diameter]	Hole Diameter [diameter]	Board Thickness	Board Thickness	Type
BUD INDUSTRIES DMB-4770	Box	Gray	57.51 mm	2.264 in	UL94 V-0	3.551 "	90.2 mm	1.429 in	36.3 mm	Plastic ABS/PC Blend	32.7 cm²	5.07 in²	DIN Rail Mount	Cover Included
BUD INDUSTRIES DMB-4774	Box	Gray	57.51 mm	2.264 in	UL94 V-0	6.28 in	159.51 mm	3.551 in		Plastic ABS/PC Blend	144 cm²	22.3 in²	DIN Rail Mount	Cover Included	90.2 mm
BUD INDUSTRIES DMB-4760-TG																Connector Guard	DMB Series
BUD INDUSTRIES DMB-4774-CB						156.21 mm	156.2 mm	3.42 in							86.9 mm			Plated Through Hole (PTH)	Breadboard Din Rail Mount	Pad Per Hole (Square)	0.1 "	2.54 mm	0.051 in	1.3 mm	0.063 in	1.6 mm
BUD INDUSTRIES DMB-4770-CB						3.42 "	86.9 mm	1.29 in							32.8 mm			Plated Through Hole (PTH)	Breadboard General Purpose	Pad Per Hole (Square)	0.1 " 0.2 in	2.54 mm 5.08 mm	0.051 in	1.3 mm	0.063 in	1.6 mm
BUD INDUSTRIES DMB-4771-IRC										Plastic ABS/PC Blend							DMB-4771										Cover Lid

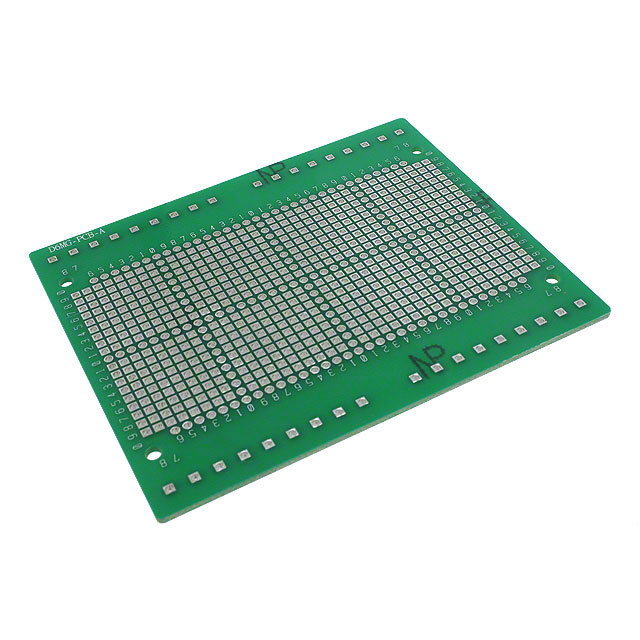

BUD INDUSTRIES DMB-4773-CB																		Plated Through Hole (PTH)	Breadboard Din Rail Mount	Pad Per Hole (Round)	0.1 " 0.2 in	2.54 mm 5.08 mm	0.051 in	1.3 mm	0.063 in	1.6 mm
BUD INDUSTRIES DMB-4771-CB						3.42 " 86.9 mm		1.97 in 50 mm										Plated Through Hole (PTH)	Breadboard Din Rail Mount	Pad Per Hole (Square)	0.1 " 0.2 in	2.54 mm 5.08 mm	0.051 in	1.3 mm	0.063 in	1.6 mm
