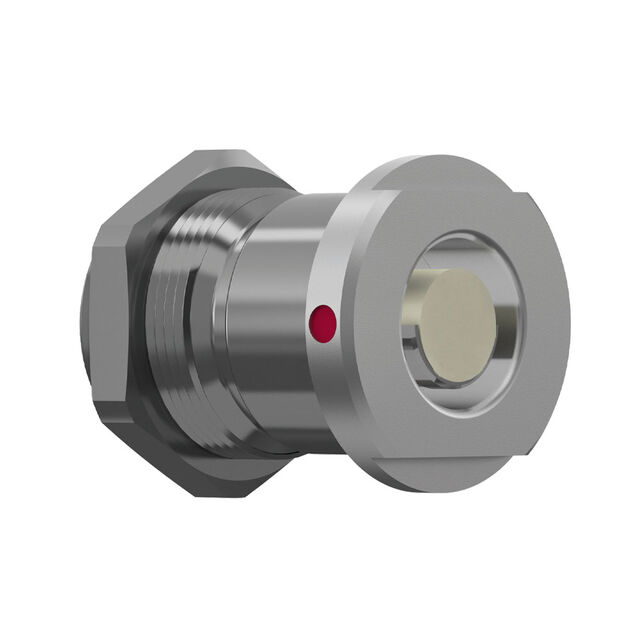

G20F1C-P Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP RECEPT, STY 2, SZ
| Part | Applications | Connector Type | Fastening Type | Color | Orientation [custom] | Mounting Type | Contact Material | Number of Positions | Current Rating (Amps) | Shell Material | Shell Size - Insert [custom] | Primary Material | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Insert Material | Shell Finish | Voltage Rating | Ingress Protection | Material Flammability Rating | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | Push-Pull | Silver | 1 | Panel Mount | Brass | 7 | 4 A | Brass | 0 | Metal | Bulkhead - Rear Side Nut | 120 °C | -40 C | Gold | Polyetheretherketone (PEEK) | Chrome over Nickel | 300 VDC | IP68 - Dust Tight Waterproof | UL94 V-0 | Unshielded | |
Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | Push-Pull | Silver | 1 | Panel Mount | Brass | 4 | 7.5 A | Brass | 0 | Metal | Bulkhead - Rear Side Nut | 120 °C | -40 C | Gold | Polyetheretherketone (PEEK) | Chrome over Nickel | 300 VDC | IP68 - Dust Tight Waterproof | UL94 V-0 | Unshielded |
