SM22B-XS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

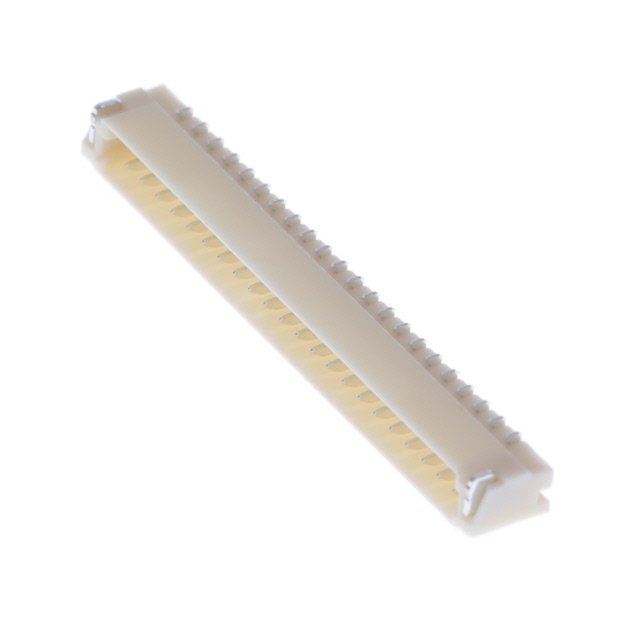

CONN HEADER SMD R/A 22POS 0.6MM
| Part | Applications | Fastening Type | Contact Type | Shrouding | Termination | Connector Type | Voltage Rating | Material Flammability Rating | Insulation Color | Contact Shape | Mounting Type | Contact Finish - Post | Style | Pitch - Mating | Pitch - Mating | Number of Rows | Insulation Height [custom] | Insulation Height [custom] | Number of Positions Loaded | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Insulation Material | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | General Purpose | Friction Lock | Outer Shroud Contact | Shrouded - 4 Wall | Solder | Header | 30 VDC | UL94 V-0 | Natural | Rectangular | Right Angle Surface Mount | Tin | Board to Cable/Wire | 0.6 mm | 0.024 in | 1 | 1.45 mm | 0.057 in | All | 0.2 A | 85 °C | -25 °C | 22 | Nylon Polyamide (PA) | Copper Alloy | Solder Retention |
