292262 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

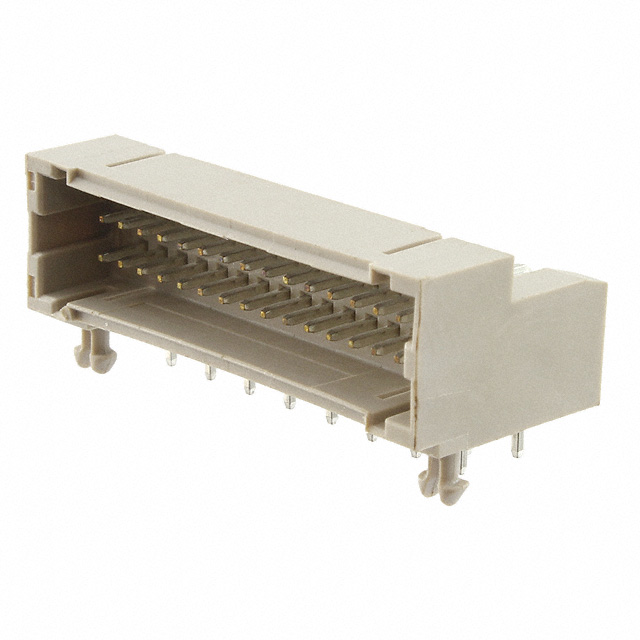

DBL ROW (H) DIP TYPE WITH BOAR
| Part | Contact Material | Shrouding | Material Flammability Rating | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Style | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Applications | Insulation Color | Voltage Rating | Insulation Material | Contact Type | Termination | Number of Positions Loaded | Contact Finish - Post | Number of Rows | Contact Shape | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | Shrouded - 4 Wall | UL94 V-0 | Header | 0.079 in | 2 mm | Board to Cable/Wire | Detent Lock | -30 ░C | 105 ░C | 0.358 in | 9.1 mm | 0.118 in | 3 mm | Varies by Wire Gauge | General Purpose | Gray | 50 VAC | Glass Filled Nylon Polyamide (PA) | Male Pin | Solder | All | Tin | 2 | Square | Through Hole Right Angle | 30 |
 TE Connectivity Raychem Cable Protection | Brass | Shrouded - 4 Wall | UL94 V-0 | Header | 0.079 in | 2 mm | Board to Cable/Wire | Detent Lock | -30 ░C | 105 ░C | 0.358 in | 9.1 mm | 0.118 in | 3 mm | Varies by Wire Gauge | General Purpose | Gray | 50 VAC | Glass Filled Nylon Polyamide (PA) | Male Pin | Solder | All | Tin | 2 | Square | Through Hole Right Angle | 34 |
