2049 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, DOUBLE ROW, 8 PINS,

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Contact Finish - Mating	Contact Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Contact Finish - Post	Current Rating (Amps)
Oupiin 2049-2X04G00U	Flash	Phosphor Bronze	Square	Polybutylene Terephthalate (PBT) Glass Filled	0.126 "	3.2 mm	0.1 "	2.54 mm	Solder	Socket	Gold	Female Socket	8	All	Flash	UL94 V-0	0.1 in	2.54 mm	-55 C	105 ░C	Right Angle Through Hole	Push-Pull	0.235 in	5.97 mm	2	Gold	2 A

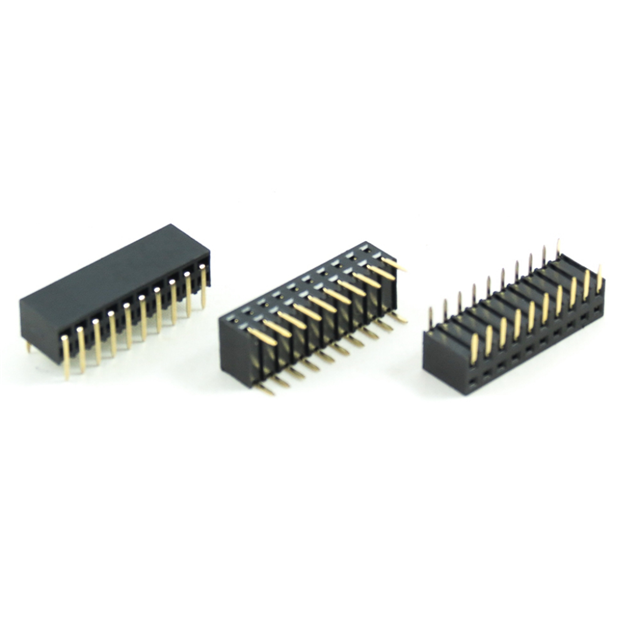

Oupiin 2049-2X05G00U	Flash	Phosphor Bronze	Square	Polybutylene Terephthalate (PBT) Glass Filled	0.126 "	3.2 mm	0.1 "	2.54 mm	Solder	Socket	Gold	Female Socket	10	All	Flash	UL94 V-0	0.1 in	2.54 mm	-55 C	105 ░C	Right Angle Through Hole	Push-Pull	0.235 in	5.97 mm	2	Gold	2 A
