MHR Series
Manufacturer: Adam Tech
Beta
⌘K

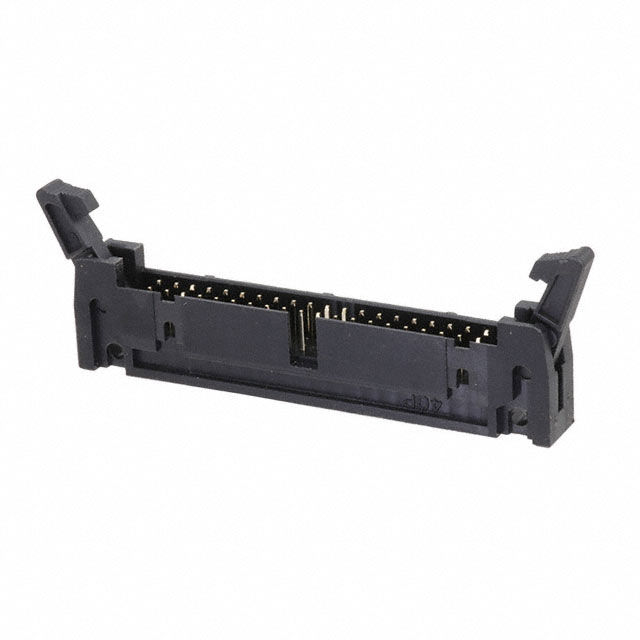

HEADERS & WIRE HOUSINGS 40P RIGHT ANGLE W/ LONG LATCHES
| Part | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Style | Insulation Height [z] | Insulation Height | Termination | Insulation Material | Number of Rows [custom] | Material Flammability Rating | Fastening Type | Mounting Type | Current Rating (Amps) | Contact Finish - Mating | Contact Material | Shrouding | Contact Finish Thickness - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage Rating | Contact Finish - Post | Contact Type | Contact Shape | Insulation Color | Number of Positions Loaded | Number of Positions | Contact Length - Post [x] | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | 0.1 " | 2.54 mm | 0.142 in | 3.6 mm | Board to Cable/Wire | 0.331 in | 8.4 mm | Solder | Polybutylene Terephthalate (PBT) | 2 | UL94 V-0 | Latch Lock/Eject Hooks Long | Right Angle Through Hole | 3 A | Gold | Brass | Shrouded - 4 Wall | Flash | 0.1 in | 2.54 mm | Header | -55 C | 105 ░C | Keying Slot | 250 VAC | Gold | Male Pin | Square | Black | All | 40 | ||
 Adam Tech | 0.1 " | 2.54 mm | 3.4 mm | Board to Cable/Wire | 16.79 mm | Solder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | UL94 V-0 | Latch Lock/Eject Hooks Long | Through Hole | Gold | Brass | Shrouded - 4 Wall | Flash | 0.1 in | 2.54 mm | Header | -40 C | 105 ░C | 250 VAC | Gold | Male Pin | Square | Black | All | 14 | 0.134 " | 0.661 " |
