USB-A Series
Manufacturer: Adam Tech
Beta
⌘K
USB A 2.0, QUAD PORT, R/A, THRU
| Part | Shell/Shielding Material | Material Flammability Rating | Contact Finish | Insulation Color | Mounting Feature | Features | Connector Type | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Gender | Specifications | Number of Contacts | Termination | Voltage - Rated | Mounting Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

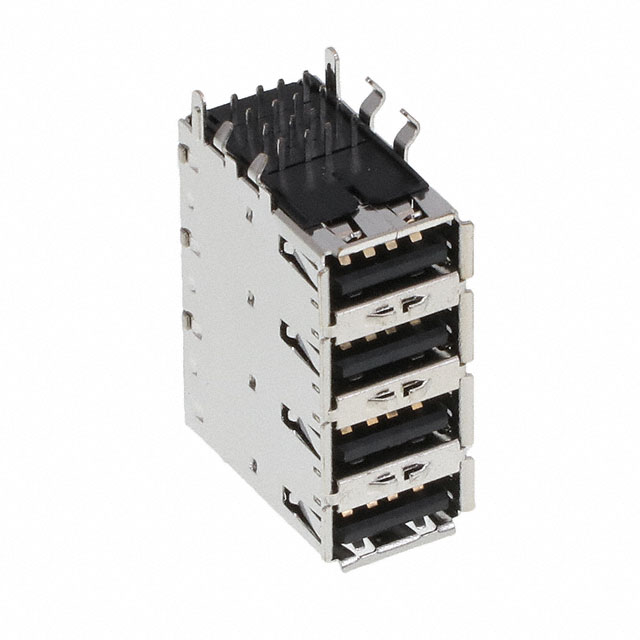

 Adam Tech | Brass | UL94 V-0 | Gold | Black | Horizontal | Board Lock | USB-A (USB TYPE-A) Stacked | 4 | -55 C | 85 °C | 1.5 A | Receptacle | USB 2.0 | 16 | Solder | 250 VAC | Right Angle Through Hole | Shielded |

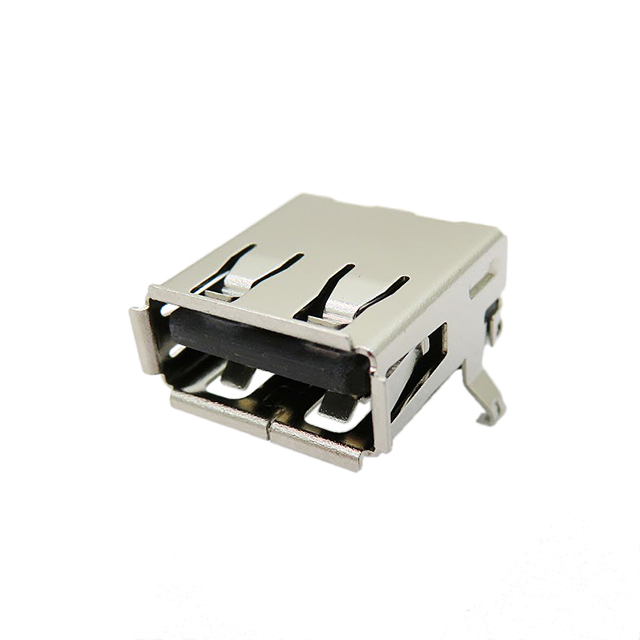

 Adam Tech | Copper Alloy | UL94 V-0 | Gold | Black | Horizontal | Board Lock | USB-A (USB TYPE-A) | 1 | -20 ░C | 60 °C | 1.5 A | Receptacle | USB 2.0 | 4 | Solder | 30 VAC | Surface Mount Right Angle Through Hole | Shielded |

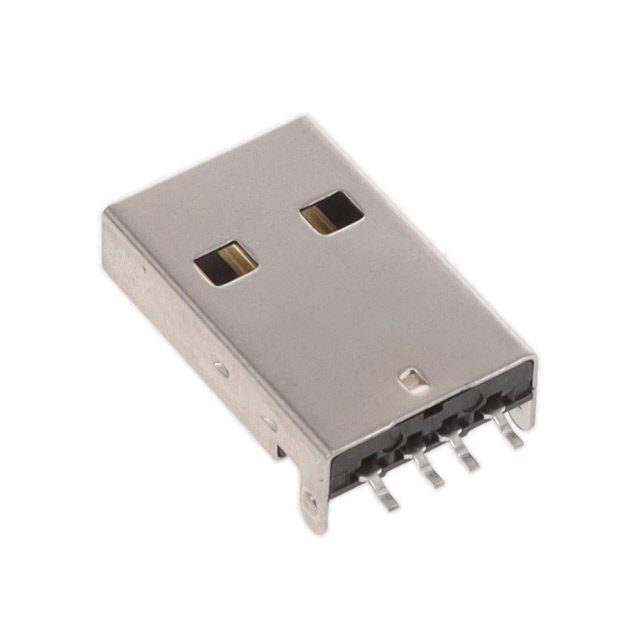

 Adam Tech | Steel (SPCC) | UL94 V-0 | Gold | Black | Horizontal | USB-A (USB TYPE-A) | 1 | -20 ░C | 60 °C | 1.5 A | Plug | USB 2.0 | 4 | Solder | 30 VAC | Surface Mount Right Angle Through Hole | Shielded | |

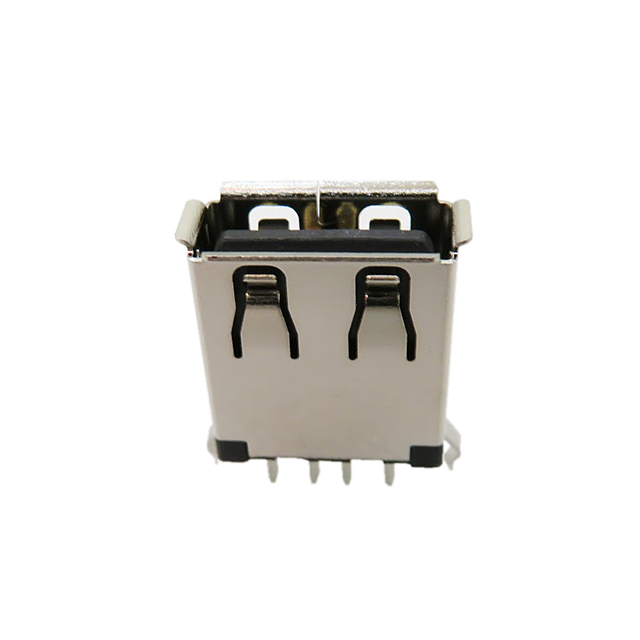

 Adam Tech | Brass | UL94 V-0 | Gold | Black | Vertical | Board Lock | USB-A (USB TYPE-A) | 1 | -20 ░C | 60 °C | 1.5 A | Receptacle | USB 2.0 | 4 | Solder | 30 VAC | Through Hole | Shielded |
 Adam Tech | Steel | UL94 V-0 | Gold | Black | Horizontal | Board Lock | USB-A (USB TYPE-A) Stacked | 2 | -20 ░C | 60 °C | Receptacle | USB 2.0 | 8 | Solder | 30 VAC | Right Angle Through Hole | Shielded | |

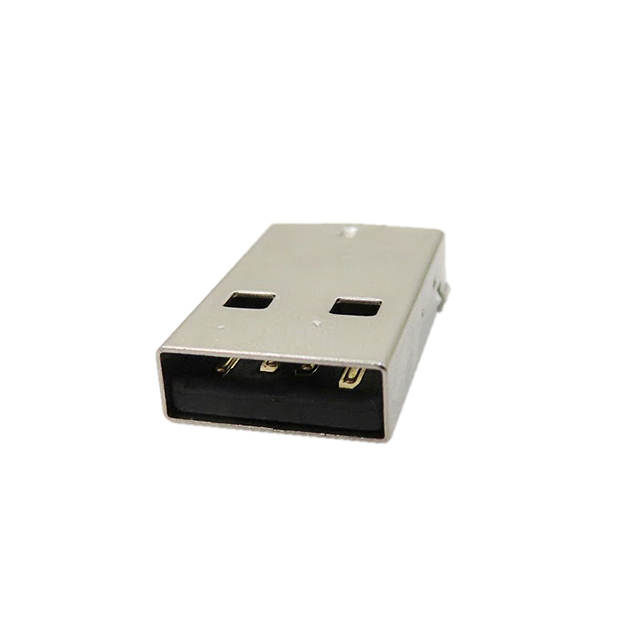

 Adam Tech | Steel | UL94 V-0 | Gold | Black | Horizontal | USB-A (USB TYPE-A) | 1 | -20 ░C | 60 °C | Plug | USB 2.0 | 4 | Solder | 30 VAC | Right Angle Through Hole | Shielded |
