HGP.0S Series
Manufacturer: LEMO
Beta
⌘K
CONN CIRC RCPT 4P GOLD SLDR CUP
| Part | Applications | Shell Material | Contact Material | Current Rating (Amps) | Mounting Feature | Fastening Type | Shell Size - Insert | Features | Contact Finish - Mating | Mounting Type | Connector Type | Material Flammability Rating | Shell Finish | Number of Positions | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Color | Primary Material | Shielding | Orientation | Includes | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Body Finish | Contact Termination | Housing Color | Shield Termination | Center Contact Material | Impedance | Cable Group | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Aviation Military | Brass | Brass Bronze | 7 A | Bulkhead - Rear Side Nut | Push-Pull | 304 | Potted Vacuumtight | Gold | Panel Mount | Receptacle Female Sockets and Male Pins | UL94 V-0 | Chrome | 4 | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | IP68 - Dust Tight Waterproof | Silver | Metal | Shielded | Keyed | |||||||||||||
 LEMO | Bulkhead - Rear Side Nut | Push-Pull | Vacuumtight | Panel Mount | Receptacle Female Socket | -20 ░C | 100 °C | IP68 - Dust Tight Waterproof | 1 Connector 1 Lockwasher 1 Nut | Brass | Polytetrafluoroethylene (PTFE) | Gold | 1000 | Chrome | Solder Cup | Silver | Solder | Beryllium Copper | 50 Ohms | 174 174A 178B 188A 196A 316B RG-122 | Coaxial | ||||||||||||||

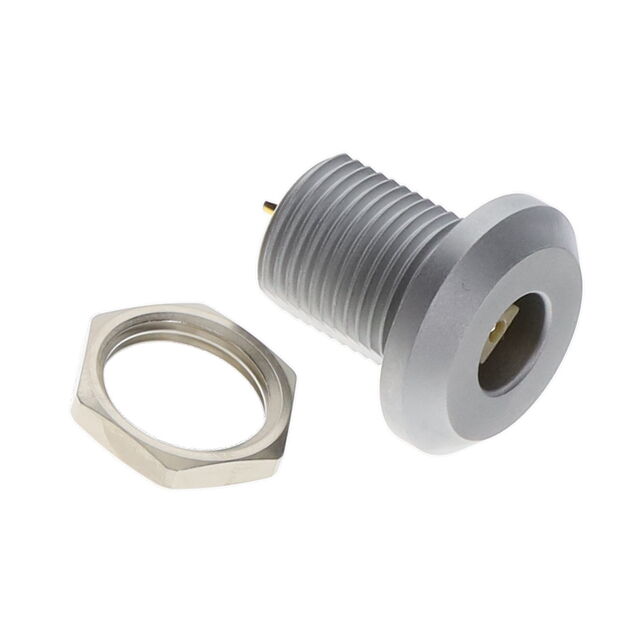

 LEMO | Aviation Military | Brass | Brass Bronze | 10 A | Bulkhead - Rear Side Nut | Push-Pull | 302 | Potted Vacuumtight | Gold | Panel Mount | Receptacle Female Sockets and Male Pins | UL94 V-0 | Chrome | 2 | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | IP68 - Dust Tight Waterproof | Silver | Metal | Shielded | Keyed | |||||||||||||
 LEMO | Bulkhead - Rear Side Nut | Push-Pull | Vacuumtight | Panel Mount | Receptacle Female Socket | -55 C | 250 °C | IP68 - Dust Tight Waterproof | 1 Connector 1 Lockwasher 1 Nut | Brass | Polytetrafluoroethylene (PTFE) | Gold | 1000 | Chrome | Solder Cup | Silver | Solder | Beryllium Copper | 50 Ohms | RG-174 RG-178 | Triaxial | ||||||||||||||
LEMO | Aviation Military | Brass | Brass Bronze | 7 A | Bulkhead - Rear Side Nut | Push-Pull | 304 | Potted | Gold | Panel Mount | Receptacle Female Sockets and Male Pins | UL94 V-0 | Chrome | 4 | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | IP68 - Dust Tight Waterproof | Silver | Metal | Shielded | Keyed | |||||||||||||
LEMO | Aviation Military | Brass | Bronze | 4 A | Bulkhead - Rear Side Nut | Push-Pull | 403 | Potted Vacuumtight | Gold | Panel Mount | Receptacle Female Sockets | Chrome | 1 | Polytetrafluoroethylene (PTFE) | -20 ░C | 100 °C | IP68 - Dust Tight Waterproof | Silver | Metal | Shielded | Keyed |
