CX2016SA Series

Catalog

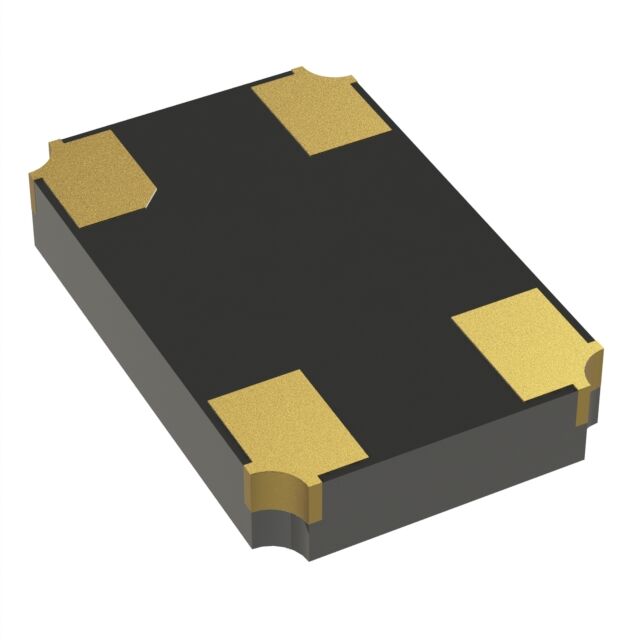

2.05X1.65X0.45MM SIZE, 24.576MHZ

Part	Load Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency Tolerance	Type	ESR (Equivalent Series Resistance)	Frequency Stability	Ratings	Operating Mode
KYOCERA AVX CX2016SA24576D0FLJG1	8 pF	1.6 mm	0.079 in	0.063 "	2 mm	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	24.576 MHz	0.02 in	0.5 mm	10 ppm	MHz Crystal	150 Ohms	15 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA38400D0FLJG1	8 pF	1.6 mm	0.079 in	0.063 "	2 mm	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	38.4 MHz	0.02 in	0.5 mm	10 ppm	MHz Crystal	60 Ohms	15 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA20000D0KSRCC	8 pF	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	4-SMD No Lead	Surface Mount	20 MHz	0.02 in	0.5 mm	30 ppm	MHz Crystal	150 Ohms	40 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA48000D0FPLG1	8 pF	1.6 mm	0.079 in	0.063 "	2 mm			4-SMD No Lead	Surface Mount	48 MHz	0.02 in	0.5 mm	10 ppm	MHz Crystal		20 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA20000D0FPLG1	8 pF	1.6 mm	0.079 in	0.063 "	2 mm			4-SMD No Lead	Surface Mount	20 MHz	0.02 in	0.5 mm	10 ppm	MHz Crystal	150 Ohms	20 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA16000D0MLRG1	8 pF	1.6 mm	0.079 in	0.063 "	2 mm	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	16 MHz	0.02 in	0.5 mm	40 ppm	MHz Crystal	200 Ohm	40 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA24305C5KSZC1	7.5 pF	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	4-SMD No Lead	Surface Mount	24.305 MHz	0.02 in	0.5 mm	30 ppm	MHz Crystal	110 Ohms	35 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA24000H0FLJG1	12 pF	1.6 mm	0.079 in	0.063 "	2 mm	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	24 MHz	0.02 in	0.5 mm	10 ppm	MHz Crystal	150 Ohms	15 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA32000B0QLSG1	6 pF	1.6 mm	0.079 in	0.063 "	2 mm	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	32 MHz	0.02 in	0.5 mm	100 ppm	MHz Crystal	60 Ohms	50 ppm	AEC-Q200	Fundamental
KYOCERA AVX CX2016SA25000H0FLJG1	12 pF	1.6 mm	0.079 in	0.063 "	2 mm	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	25 MHz	0.02 in	0.5 mm	10 ppm	MHz Crystal	150 Ohms	15 ppm	AEC-Q200	Fundamental
