IRFHM830 Series
Manufacturer: INFINEON
Beta
⌘K

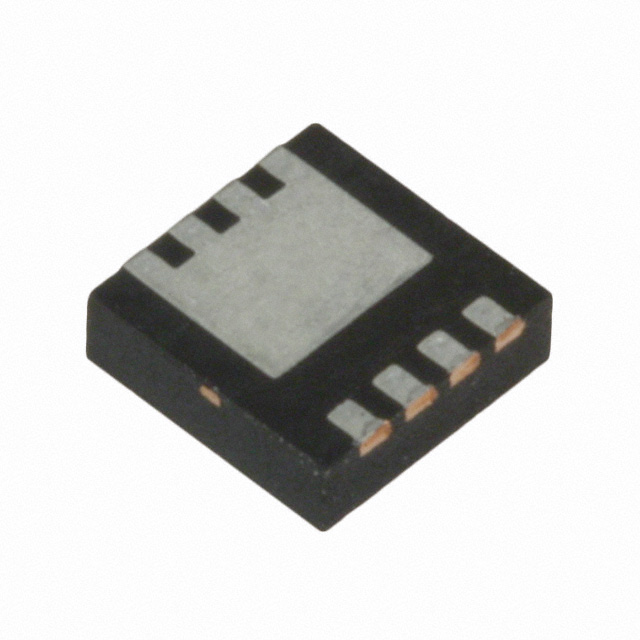

STRONGIRFET™ N-CHANNEL POWER MOSFET ; PQFN 3.3 X 3.3 PACKAGE; 3.8 MOHM;
| Part | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs(th) (Max) @ Id | Operating Temperature [Max] | Operating Temperature [Min] | Rds On (Max) @ Id, Vgs | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Input Capacitance (Ciss) (Max) @ Vds [Max] | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) | Package / Case | Technology | Mounting Type | Current - Continuous Drain (Id) @ 25°C | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 31 nC | 30 V | 2.35 V | 150 °C | -55 °C | 3.8 mOhm | 3.3 | 3.3 | 8-PQFN-Dual | 2155 pF | 20 V | 4.5 V 10 V | 2.7 W 37 W | 8-PowerVDFN | MOSFET (Metal Oxide) | Surface Mount | 21 A 40 A | N-Channel |
