ACJ1212 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

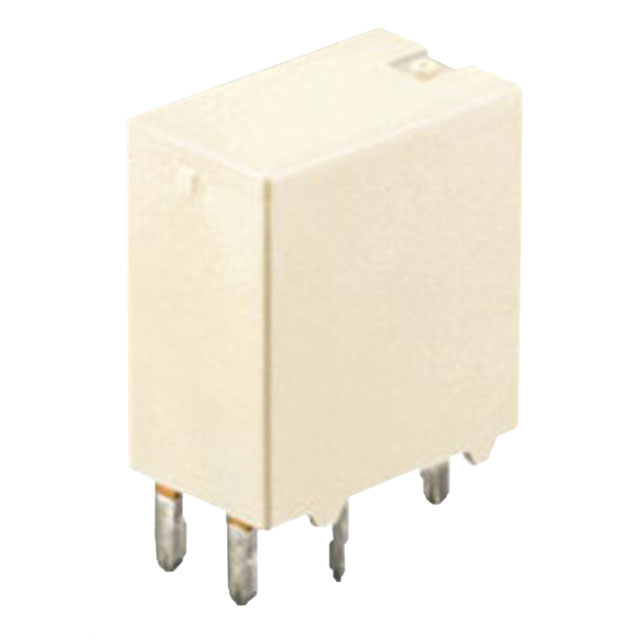

RELAY AUTOMOTIVE SPDT 20A 12V
| Part | Contact Material | Coil Power | Coil Resistance | Operate Time | Coil Current | Contact Form | Mounting Type | Must Operate Voltage | Features | Termination Style | Switching Voltage | Release Time | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Release Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Silver Alloy Cadmium Free | 640 mW | 225 Ohms | 10 ms | 53.3 mA | SPDT (1 Form C) | Through Hole | 7.2 VDC | Sealed - Flux Protection | PC Pin | 14 VDC | 10 ms | Non Latching | 85 °C | -40 C | 12 VDC | 1 VDC | 20 A |
