Industrial Relays 15KV SPDT HV RELAY
Industrial Relays 15KV SPDT HV RELAY
| Part | Contact Material | Release Time | Operate Time | Contact Rating (Current) | Operating Temperature (Max) | Operating Temperature (Min) | Must Release Voltage | Contact Form | Coil Voltage | Mounting Type | Termination Style | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Must Operate Voltage | Coil Power | Coil Resistance | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

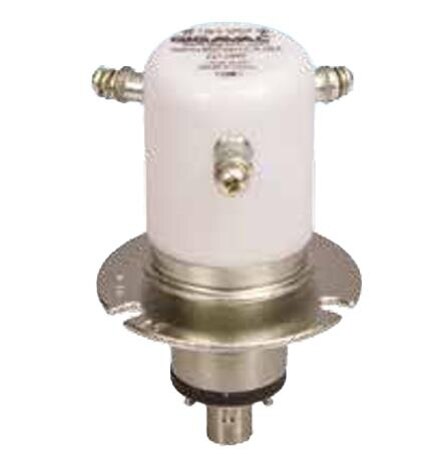

 Sensata - Gigavac Industrial | Tungsten (W) | 9 ms | 15 ms | 12 A | 125 °C | -55 °C | 1 VDC | 1 C Form SPDT | 26.5 VDC | Panel Mount | Screw Terminal | 15000 VAC | 15000 VDC | 16 VDC | |||

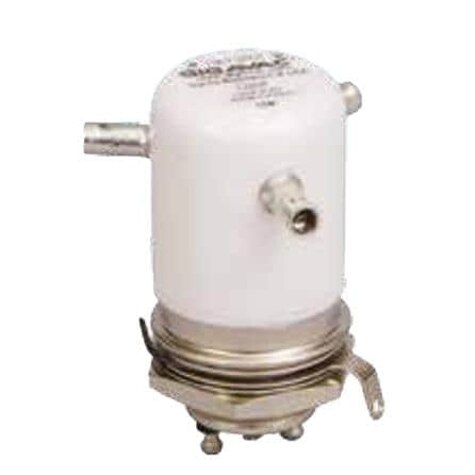

 Sensata - Gigavac Industrial | Tungsten (W) | 9 ms | 15 ms | 12 A | 125 °C | -55 °C | 5 VDC | 1 C Form SPDT | 115 VAC | Panel Mount | Solder Cup Solder Turret | 15000 VAC | 15000 VDC | 80 VDC | 4.6 W | 2900 Ohms | 39.7 mA |
