MLT6 Series

Catalog

MLT TIE, 316 SS, LIGHT HEAVY, 20.5 (521M ROHS COMPLIANT: YES

Part	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [y]	Width	Color	Mounting Type	Length - Actual [x]	Length - Actual [x]	Wire/Cable Tie Type	Material	Length - Approximate	Tensile Strength	Tensile Strength	Features	Length - Actual	Width	Width [x]	Width [x]	Width [y]
Panduit Corp MLT6LH-LP316	6 in	152.4 mm	0.25 in	6.35 mm	Silver	Free Hanging (In-Line)	1.709 ft	521 mm	Locking Standard	Stainless Steel 316	20.5 in	250 lbs	113.4 kg	Corrosion Resistance

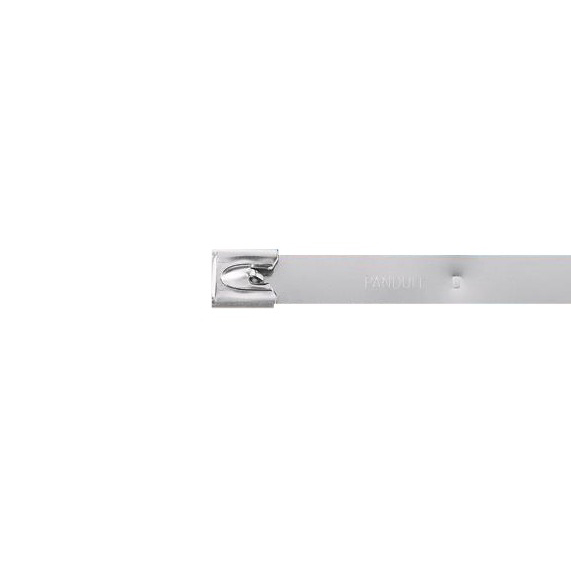

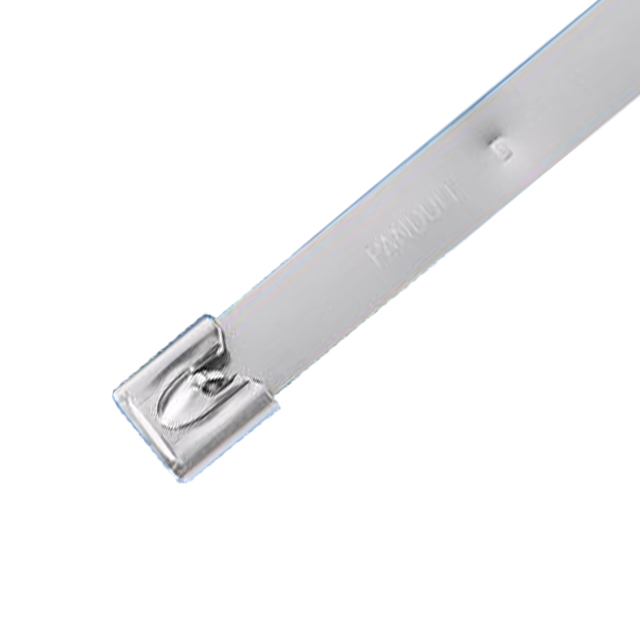

Panduit Corp MLT6EH15-LP316	6 in	152.4 mm		12.7 mm	Silver	Free Hanging (In-Line)	1.95 ft		Locking Standard	Stainless Steel 316	23.5 in	700 lbs	317.52 kg	Corrosion Resistance	594.36 mm	0.5 in
Panduit Corp MLT6SH-LP	6 in	152.4 mm			Silver	Free Hanging (In-Line)	1.95 ft		Locking Standard	Stainless Steel 304	23.5 in	900 lbs	408.24 kg	UV Resistant	594.36 mm		0.63 in	16 mm

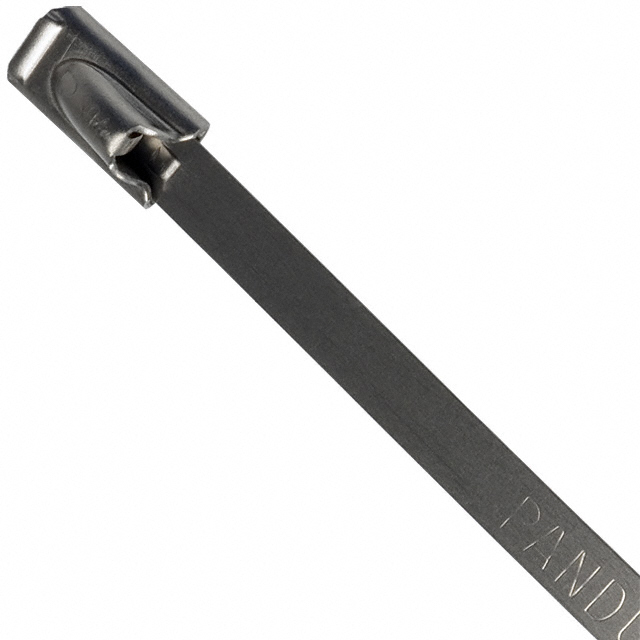

Panduit Corp MLT6S-CP	6 in	152.4 mm			Silver	Free Hanging (In-Line)	1.709 ft	521 mm	Locking Standard	Stainless Steel 304	20.5 in	200 lbs	90.72 kg	UV Resistant			0.18 in	4.57 mm
Panduit Corp MLT6WLH-LP	6 in	152.4 mm	0.25 in	6.35 mm	Silver	Free Hanging (In-Line)	1.709 ft	521 mm	Locking Standard	Stainless Steel 304	20.5 in	250 lbs	113.4 kg	UV Resistant
Panduit Corp MLT6WH-LP	6 in	152.4 mm	0.31 in		Silver	Free Hanging (In-Line)	1.709 ft	521 mm	Locking Standard	Stainless Steel 304	20.5 in	450 lbs	204.12 kg	UV Resistant					7.87 mm
Panduit Corp MLT6EH15-LP	6 in	152.4 mm		12.7 mm	Silver	Free Hanging (In-Line)	1.95 ft		Locking Standard	Stainless Steel 304	23.5 in	700 lbs	317.52 kg	UV Resistant	594.36 mm	0.5 in
