AAA6F Series

Catalog

AAA SERIES, 6 CONTACTS, FEMALE, METAL HANDLE, BLACK FINISH, SILVER CONTACT PLATING, 0.135"[3.4MM] CABLE STRAIN RELIEF SIZE, SEAL

Part	Applications	Contact Finish - Mating	Shell Size - Insert	Shielding	Connector Type	Fastening Type	Shell Finish	Orientation	Ingress Protection	Shell Material	Primary Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Color	Number of Positions	Contact Material	Features	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Backshell Material, Plating	Current Rating (Amps)	Voltage Rating
SWITCHCRAFT/CONXALL AAA6FBZH	Audio Instrumentation	Silver	XLR	Shielded	Plug Female Sockets	Latch Lock	Chrome	Keyed	IP66 - Dust Tight Water Resistant	Zinc Alloy	Metal	0.15 "	7.24 mm	0.285 in	3.81 mm	Black	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief	Chrome	Zinc	Free Hanging (In-Line)	-40 C	65 °C	Thermoplastic
SWITCHCRAFT/CONXALL AAA6FPZH	Audio Instrumentation	Silver	XLR	Shielded	Plug Female Sockets	Latch Lock	Nickel	Keyed	IP66 - Dust Tight Water Resistant	Zinc Alloy	Metal	0.15 "	7.24 mm	0.285 in	3.81 mm	Silver	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief			Free Hanging (In-Line)	-40 C	65 °C	Thermoplastic	Nickel Zinc Alloy
SWITCHCRAFT/CONXALL AAA6FBAUZH	Audio Instrumentation	Gold	XLR	Shielded	Plug Female Sockets	Latch Lock	Chrome	Keyed	IP66 - Dust Tight Water Resistant	Zinc Alloy	Metal	0.15 "	7.24 mm	0.285 in	3.81 mm	Black	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief	Chrome	Zinc	Free Hanging (In-Line)	-40 C	65 °C	Thermoplastic

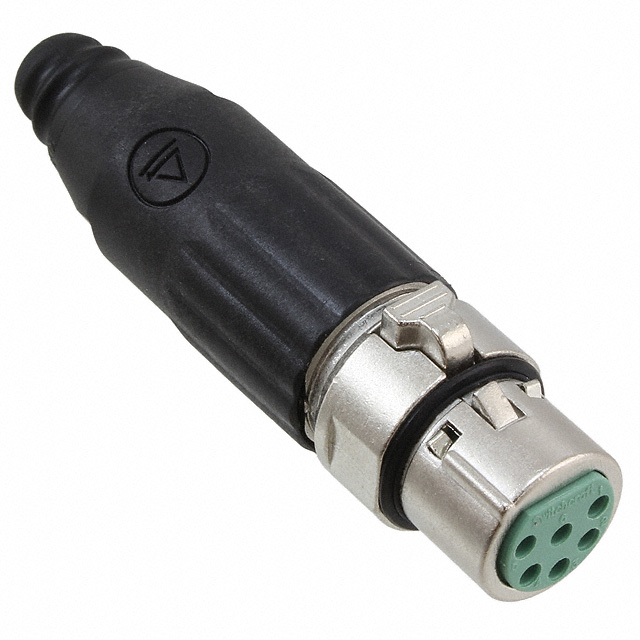

SWITCHCRAFT/CONXALL AAA6FPZ	Audio Industrial Instrumentation Medical	Silver	XLR	Shielded	Plug Female Sockets	Latch Lock	Nickel	Keyed		Zinc Alloy	Metal	0.1 "	5.59 mm	0.22 in	2.54 mm	Silver	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief			Free Hanging (In-Line)			Thermoplastic	Nickel Zinc Alloy	7.5 A	125 VAC
SWITCHCRAFT/CONXALL AAA6FZH	Audio Instrumentation	Silver	XLR	Shielded	Plug Female Sockets	Latch Lock	Nickel	Keyed	IP66 - Dust Tight Water Resistant	Zinc Alloy	Metal	0.15 "	7.24 mm	0.285 in	3.81 mm	Silver	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief			Free Hanging (In-Line)	-40 C	65 °C	Thermoplastic	Nickel Zinc Alloy

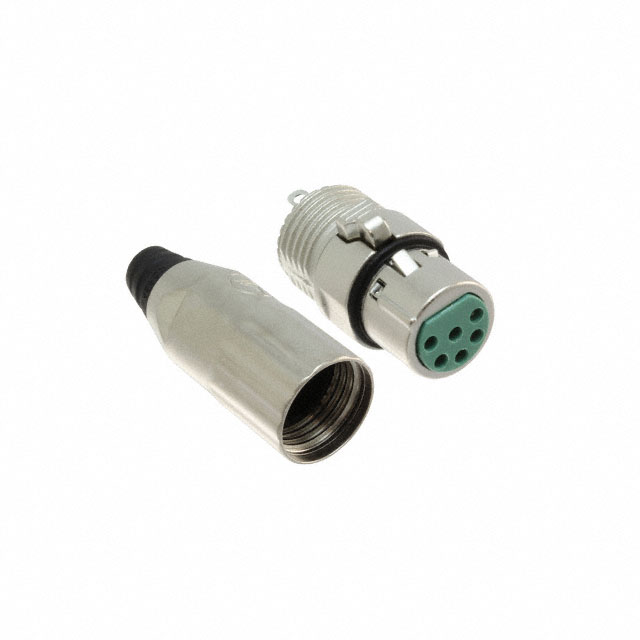

SWITCHCRAFT/CONXALL AAA6FZ	Audio Industrial Instrumentation Medical	Silver	XLR	Shielded	Plug Female Sockets	Latch Lock	Nickel	Keyed		Zinc Alloy	Metal	0.1 "	5.59 mm	0.22 in	2.54 mm	Silver	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief			Free Hanging (In-Line)			Thermoplastic	Nickel Zinc Alloy	7.5 A	125 VAC
SWITCHCRAFT/CONXALL AAA6FBAUZ	Audio Industrial Instrumentation Medical	Gold	XLR	Shielded	Plug Female Sockets	Latch Lock	Chrome	Keyed		Zinc Alloy	Metal	0.1 "	5.59 mm	0.22 in	2.54 mm	Black	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief	Chrome	Zinc	Free Hanging (In-Line)			Thermoplastic		7.5 A	125 VAC
SWITCHCRAFT/CONXALL AAA6FBZ	Audio Industrial Instrumentation Medical	Silver	XLR	Shielded	Plug Female Sockets	Latch Lock	Chrome	Keyed		Zinc Alloy	Metal	0.1 "	5.59 mm	0.22 in	2.54 mm	Black	6	Copper Alloy	Backshell Cable Clamp Ground Strain Relief	Chrome	Zinc	Free Hanging (In-Line)			Thermoplastic		7.5 A	125 VAC
