TS05-66 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 2.6N

Part	Illumination	Contact Rating @ Voltage	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Actuator Height off PCB, Vertical	Ingress Protection	Circuit	Switch Function	Outline [y]	Outline [x]	Operating Force	Actuator Type	Actuator Material	Mechanical Life	Mounting Type	Termination Style	Actuator Height off PCB, Vertical [z]
Same Sky (Formerly CUI Devices) TS05-66-80-BK-260-SMT-67	Non-Illuminated	0.05 A 12 VDC	Top Actuated	80 °C	-30 ░C	0.25 mm	8 mm	IP67 - Dust Tight Waterproof	SPST-NO	Off-Mom	6.1 mm	6.1 mm	260 gf	Standard	Polyamide (PA6T) Nylon 6T	60000 Cycles	Surface Mount	Gull Wing

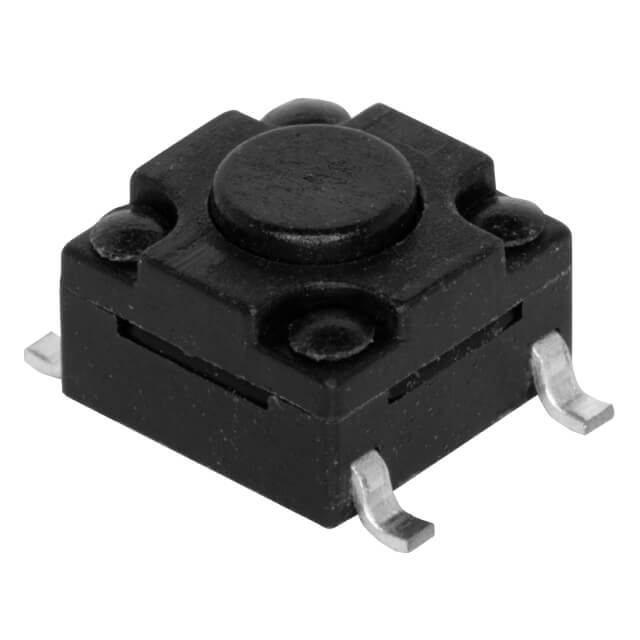

Same Sky (Formerly CUI Devices) TS05-66-43-BK-260-SMT-67	Non-Illuminated	0.05 A 12 VDC	Top Actuated	80 °C	-30 ░C			IP67 - Dust Tight Waterproof	SPST-NO	Off-Mom	6.1 mm	6.1 mm	260 gf	Standard			Surface Mount	Gull Wing	4.3 mm
Same Sky (Formerly CUI Devices) TS05-66-50-BK-260-SMT-67	Non-Illuminated	0.05 A 12 VDC	Top Actuated	80 °C	-30 ░C			IP67 - Dust Tight Waterproof	SPST-NO	Off-Mom	6.1 mm	6.1 mm	260 gf	Standard			Surface Mount	Gull Wing	5 mm
Same Sky (Formerly CUI Devices) TS05-66-50-BK-260-SMT-67	Non-Illuminated	0.05 A 12 VDC	Top Actuated	80 °C	-30 ░C	0.25 mm		IP67 - Dust Tight Waterproof	SPST-NO	Off-Mom	6.1 mm	6.1 mm	260 gf	Standard	Polyamide (PA6T) Nylon 6T	60000 Cycles	Surface Mount	Gull Wing	5 mm
Same Sky (Formerly CUI Devices) TS05-66-80-BK-260-SMT-67	Non-Illuminated	0.05 A 12 VDC	Top Actuated	80 °C	-30 ░C		8 mm	IP67 - Dust Tight Waterproof	SPST-NO	Off-Mom	6.1 mm	6.1 mm	260 gf	Standard			Surface Mount	Gull Wing
Same Sky (Formerly CUI Devices) TS05-66-43-BK-260-SMT-67	Non-Illuminated	0.05 A 12 VDC	Top Actuated	80 °C	-30 ░C	0.25 mm		IP67 - Dust Tight Waterproof	SPST-NO	Off-Mom	6.1 mm	6.1 mm	260 gf	Standard	Polyamide (PA6T) Nylon 6T	60000 Cycles	Surface Mount	Gull Wing	4.3 mm
