3580/60 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

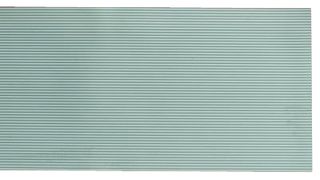

RIBBON CABLE, FLAT, UNSHIELDED, 60 CONDUCTOR, 28 AWG, 0.09 MM², 100 FT, 30.5 M
| Part | Conductor Material | First Conductor Mark | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Shielding | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Voltage | Ribbon Width [custom] | Ribbon Width [custom] | Jacket (Insulation) Material | Jacket Color | Length | Length | Wire Gauge | Ribbon Thickness | Ribbon Thickness | Pitch | Pitch | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | Red | -20 ░C | 105 ░C | 60 | Unshielded | 36 AWG | 7 Strands | Flat Cable | 300 VDC | 76.2 mm | 3 in | Poly-Vinyl Chloride (PVC) | Gray | 100 ' | 30.48 m | 28 AWG | 0.033 " | 0.84 mm | 0.05 in | 1.27 mm | UL Style 2651 |
