0913-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

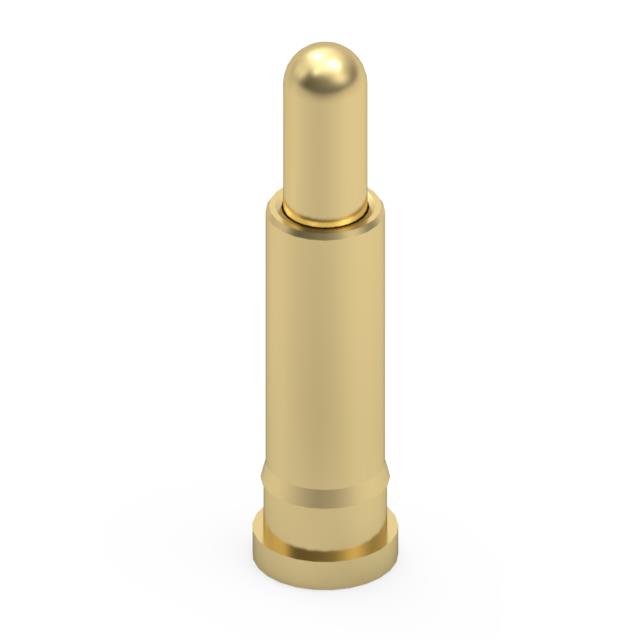

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension | Pad Layout Dimension | Mating Cycles | Minimum Working Height | Minimum Working Height | Operating Force - Mid Compression | Recommended Working Height | Recommended Working Height | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.288 in | 7.32 mm | 5.2 A | Brass Alloy | 0.042 in | 1.07 mm | 0.072 in | 1.83 mm | 1000000 | 5.03 mm | 0.198 in | 60 gf | 0.243 in | 6.18 mm | Surface Mount | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm |
