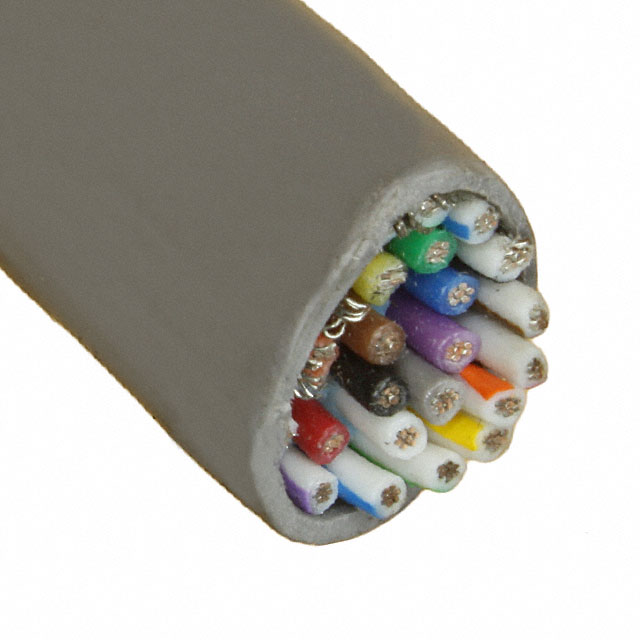

5110/25C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 25COND 22AWG SHLD
| Part | Shield Coverage | Shield Material | Number of Conductors [custom] | Shield Type | Conductor Insulation | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Wire Gauge | Conductor Material | Cable Type | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Material | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 25 | Braid Foil | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 0.396 " | 10.06 mm | Communication Control | 22 AWG | Copper Tinned | Multi-Conductor | Slate | 30 AWG | 7 | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Biological Compatibility Drain Wire Rip Cord |
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 25 | Braid Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.396 " | 10.06 mm | Communication Control | 22 AWG | Copper Tinned | Multi-Conductor | Slate | 30 AWG | 7 | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Biological Compatibility Drain Wire Rip Cord |
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 25 | Braid Foil | Poly-Vinyl Chloride (PVC) | 0.396 " | 10.06 mm | Communication Control | 22 AWG | Copper Tinned | Multi-Conductor | Slate | 30 AWG | 7 | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Biological Compatibility Drain Wire Rip Cord |
